1053841 - Phoenix Contact

Description: DMCV 1,5/ 5-G1-3,5 P35 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 10, number of rows: 2, number of positions: 5, number of connections: 10, product range: DMCV 1,5/..-G1, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 1,5, Pin

Download 1053841 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1053841 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

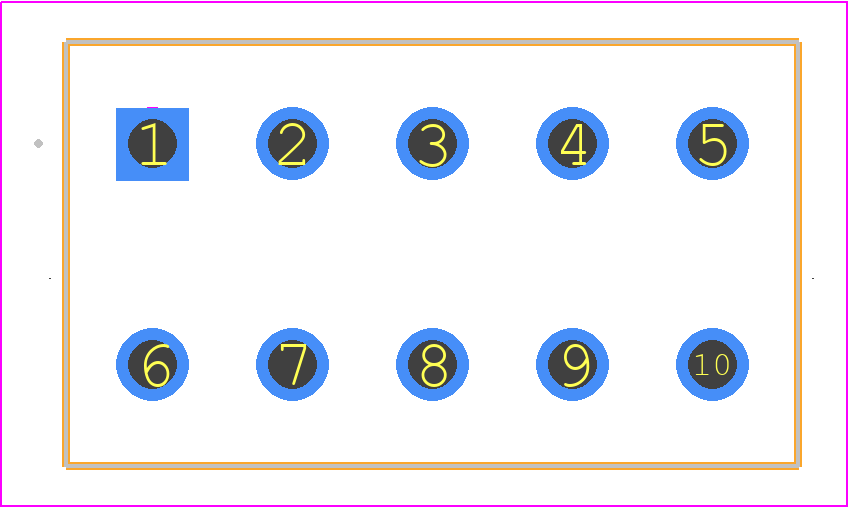

1053841 - Phoenix Contact PCB footprint - Other - Other - 1053841
click to zoom
3D Models
1053841 - Phoenix Contact - 3D model - Other - 1053841
click to zoom

1053841 Details

  • Manufacturer Part Number:

    1053841

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    SPRING CAGE

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    10

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CUL;EAC;UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    15 AWG

1053841 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material.
  • Yes, the connector is rated IP67, making it suitable for outdoor use and able to withstand exposure to water and dust.
  • Yes, the 1053841 connector is designed to withstand high vibrations and is suitable for use in applications such as industrial machinery, transportation, and construction equipment.
  • The maximum operating temperature for the 1053841 connector is 125°C (257°F), making it suitable for use in high-temperature applications.
  • Yes, the 1053841 connector is UL-certified, ensuring compliance with North American safety standards for electrical components.
