1053976 - Phoenix Contact

Description: DMCV 1,5/ 5-G1F-3,5-LR P35 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 10, number of rows: 2, number of positions: 5, number of connections: 10, product range: DMCV 1,5/..-G1F, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 1,5

Download 1053976 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1053976 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

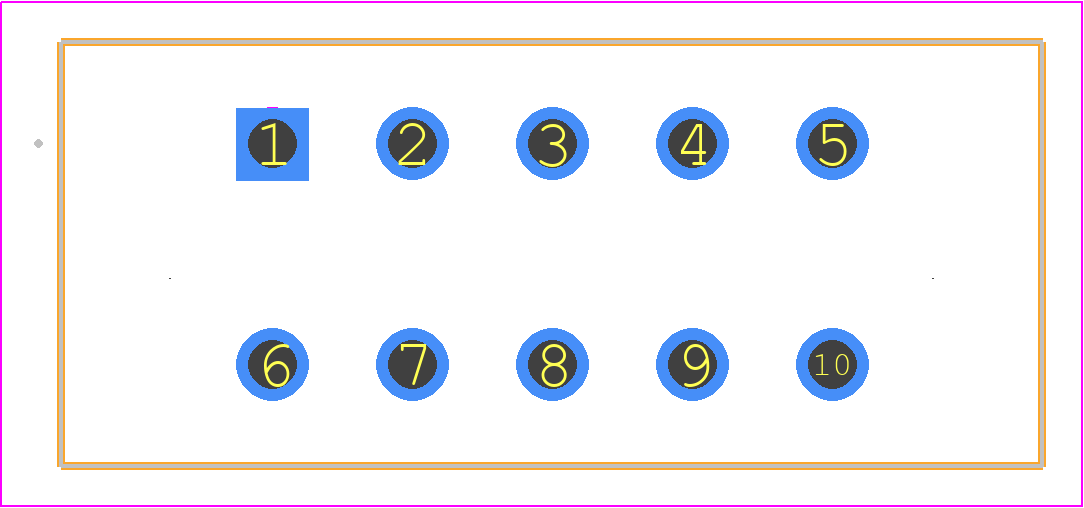

1053976 - Phoenix Contact PCB footprint - Other - Other - 1053976
click to zoom
3D Models
1053976 - Phoenix Contact - 3D model - Other - 1053976
click to zoom

1053976 Details

  • Manufacturer Part Number:

    1053976

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    SPRING CAGE

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    10

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CUL;EAC;UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    15 AWG

1053976 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 1053976 connector onto a panel is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 1053976 connector is designed for outdoor use and meets the IP67 rating, which means it is protected against dust and water ingress up to 1 meter for 30 minutes.
  • Yes, the 1053976 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10 g according to IEC 60068-2-6.
  • The maximum operating temperature for the 1053976 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 1053976 connector is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and accessories.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1053976 Overview

Use the download button to access the 1053976 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10539, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.

Parts related to 1053976
