1054545 - Phoenix Contact

Description: PCH 6/ 4+4-GL4-7,62 - PCB hybrid header, nominal cross section: 6 mm<sup>2</sup>, color: green, nominal current: 41 A, 8 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: PCH 6/..+4-GL, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.1 mm, plug-in system: COMBICON PC 6 hybrid, Pin connector pattern alignment: Standard, locking:

Download 1054545 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1054545 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

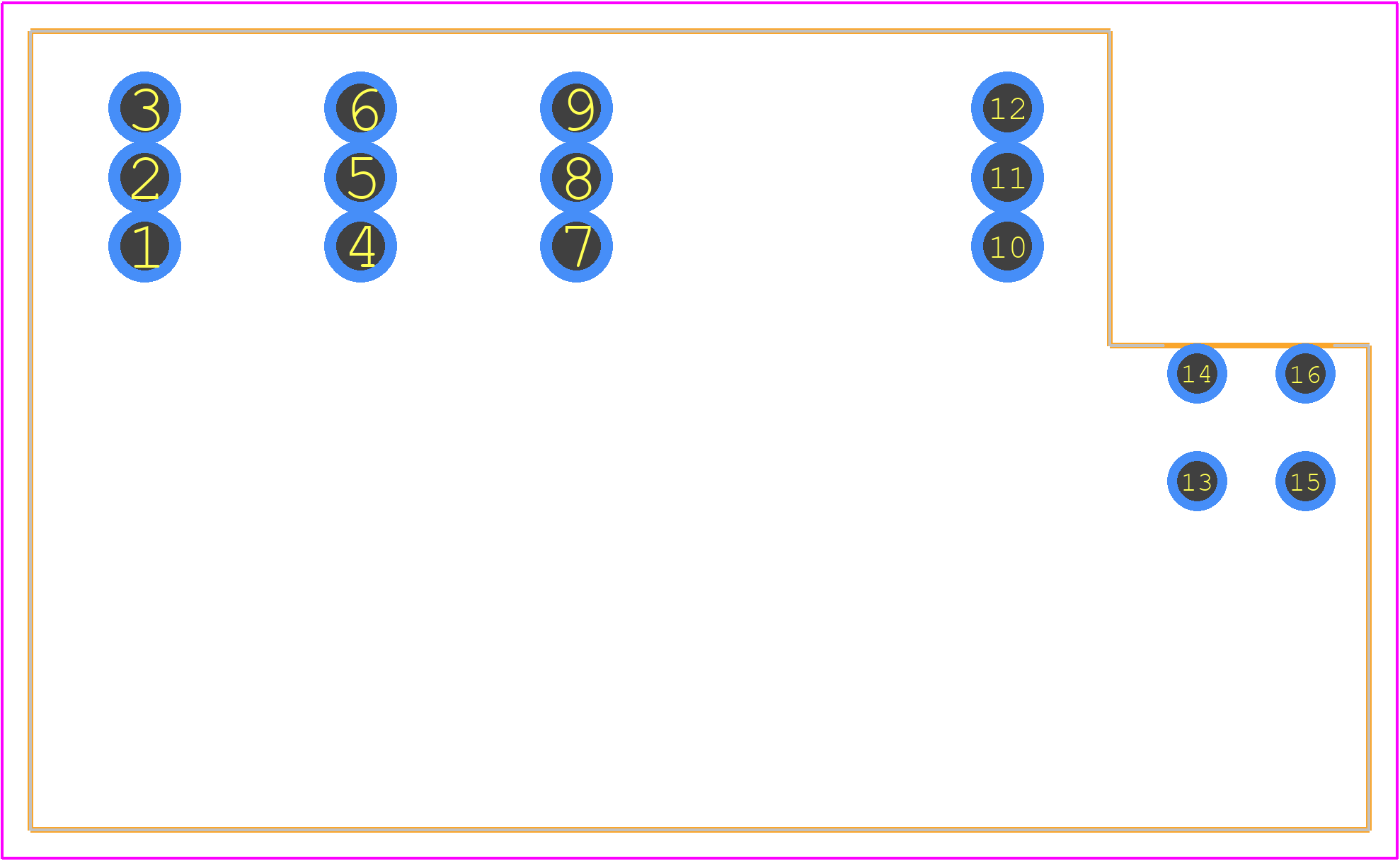

1054545 - Phoenix Contact PCB footprint - Other - Other - 1054545-2
click to zoom
3D Models
1054545 - Phoenix Contact - 3D model - Other - 1054545-2
click to zoom

1054545 Details

  • Manufacturer Part Number:

    1054545

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1054545 Frequently Asked Questions (FAQs)

  • The recommended torque for screw termination is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact application notes.
  • Yes, the 1054545 connector is suitable for outdoor use, as it has a IP67 rating, which provides protection against dust and water ingress.
  • Yes, the 1054545 connector is designed to withstand high-vibration applications, with a vibration resistance of 10 g according to IEC 60068-2-6.
  • The maximum operating temperature for the 1054545 connector is 125°C, as specified in the datasheet.
  • Yes, the 1054545 connector is part of the Phoenix Contact COMBI connector family and is compatible with other connectors in the same series.
