Quantic Paktron recommends following the IPC-7351B standard for land pattern design and PCB layout. Additionally, it's essential to ensure a solid ground plane and adequate decoupling capacitors to minimize noise and EMI.
The 105K400CS6G has a thermal resistance of 10°C/W. To ensure proper thermal management, it's recommended to use a heat sink with a thermal interface material, and to maintain a maximum junction temperature of 125°C.
Quantic Paktron recommends a soldering profile with a peak temperature of 260°C, a dwell time of 30-60 seconds, and a ramp rate of 3°C/second. It's also essential to use a solder with a melting point above 217°C.
Common issues with the 105K400CS6G can be troubleshooted by checking the PCB layout, ensuring proper decoupling, and verifying the input and output impedance matching. Additionally, it's recommended to consult the application notes and technical support resources provided by Quantic Paktron.
The 105K400CS6G is a sensitive electronic component and should be stored in a dry, cool place, away from direct sunlight and moisture. It's recommended to handle the component with anti-static wrist straps and mats, and to avoid bending or flexing the leads.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
105K400CS6G Overview

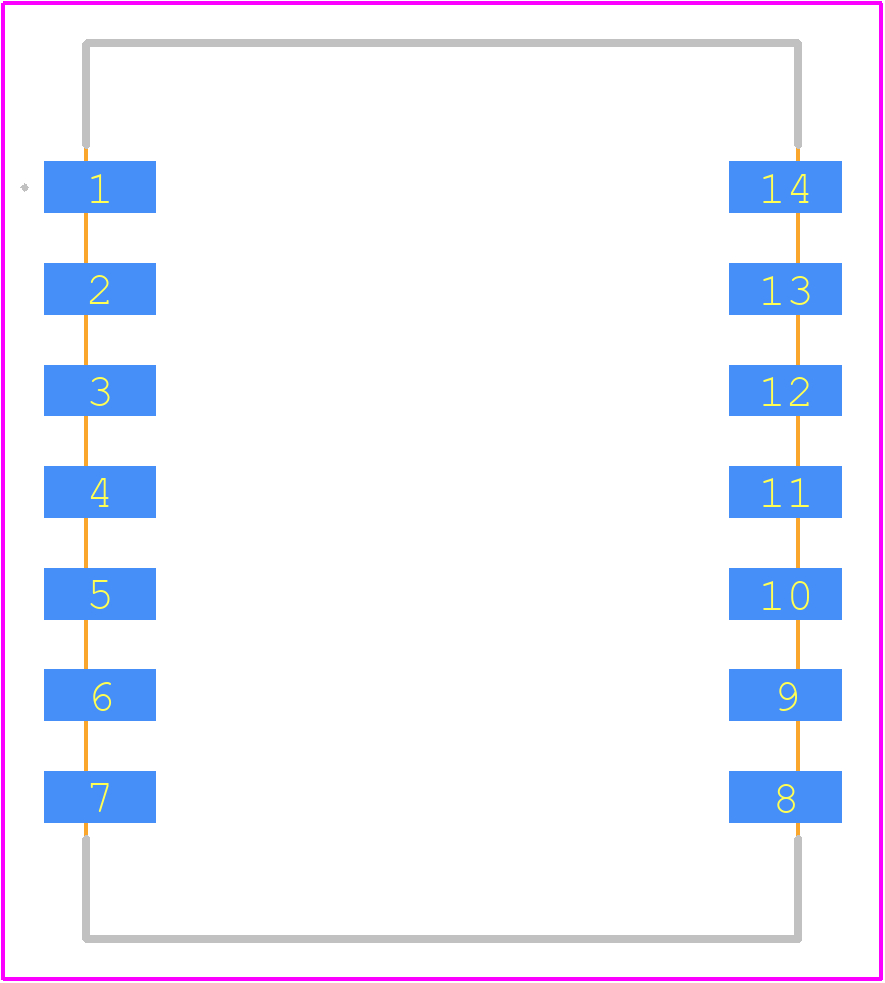

Use the download button to access the 105K400CS6G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 105K4,
or try a keyword search, such as Array/Network Capacitors
