107H - Hammond Manufacturing

Description: Audio Transformers / Signal Transformers 600 ct 600 ct

Download 107H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

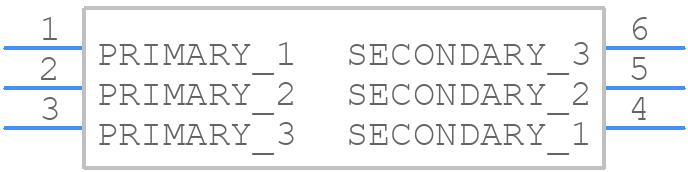

107H - Hammond Manufacturing - PCB symbol
click to zoom
PCB Footprints

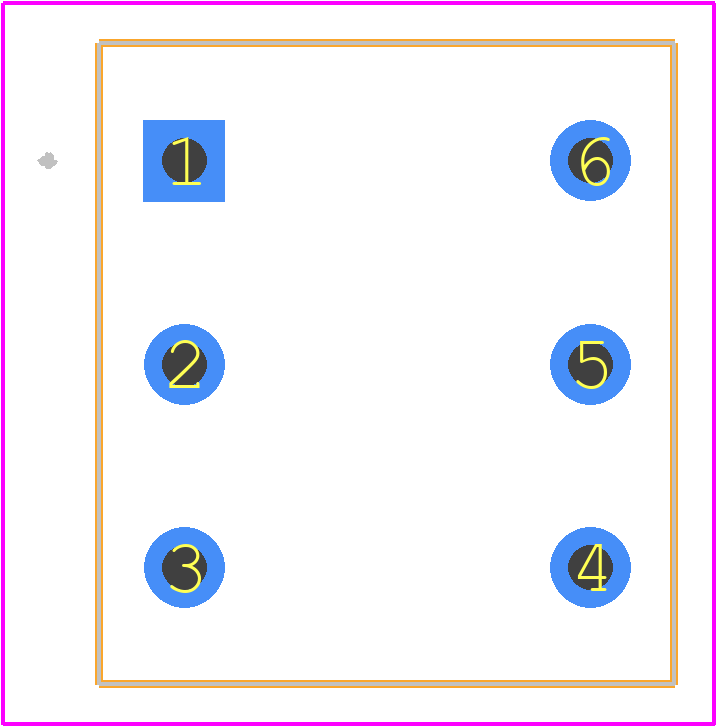

107H - Hammond Manufacturing PCB footprint - Other - Other - 107H-1
click to zoom
3D Models
107H - Hammond Manufacturing - 3D model - Other - 107H-1
click to zoom

107H Details

  • Manufacturer Part Number:

    107H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    Canada

  • ECCN Code:

    EAR99

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    6

  • Application:

    AUDIO; ISOLATION; LINE MATCHING

  • Height:

    16.002 mm

  • Length:

    16.002 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Operating Frequency-Max:

    50 kHz

  • Operating Frequency-Min:

    0.3 kHz

  • Operating Temperature-Max:

    85 °C

  • Primary Impedance:

    600 OHMS CT

  • Secondary Impedance:

    600 OHMS CT

  • Surface Mount:

    NO

  • Transformer Type:

    GENERAL PURPOSE AUDIO TRANSFORMER

  • Width:

    14.884 mm

107H Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 107H is 10-12 in-lbs (1.1-1.4 Nm).
  • Yes, the 107H is designed to withstand high-vibration environments. However, it's recommended to secure the enclosure with additional fasteners or adhesives to ensure stability.
  • The 107H is not designed for outdoor use and should be used in a controlled environment. If outdoor use is required, consider using a weather-resistant enclosure or applying additional protective coatings.
  • Yes, Hammond Manufacturing offers customization services for the 107H. Contact their sales team to discuss your specific requirements and lead times.
  • The 107H has an IP rating of IP65, providing protection against dust and water jets.
