Intel provides a PCB design guide for the Arria 10 FPGA family, which includes the 10AX032H2F35E2SG. The guide recommends a 4-6 layer PCB stackup with a minimum of two power planes and two ground planes. It also provides guidelines for signal routing, decoupling, and thermal management.
Intel provides a PowerPlay Early Power Estimator (EPE) tool that allows you to estimate power consumption based on your design's specific requirements. You can also use the Quartus II software to optimize power consumption by selecting the optimal voltage, frequency, and power-saving features for your design.
The 10AX032H2F35E2SG has a maximum junction temperature of 100°C. Intel recommends using a heat sink with a thermal interface material to maintain a junction temperature below 85°C. The FPGA's thermal design power (TDP) is 12W, and the recommended airflow is 200-400 LFM.
Intel recommends using a reliable configuration source, such as a flash memory device or a remote update mechanism. You should also implement a robust boot-up sequence that includes error detection and correction mechanisms to ensure reliable configuration and boot-up of the FPGA.
The 10AX032H2F35E2SG is designed to meet the radiation and EMC requirements for commercial and industrial applications. However, for specific applications that require compliance with stricter radiation and EMC standards, such as aerospace or automotive, Intel recommends consulting the relevant standards and guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
10AX032H2F35E2SG Overview

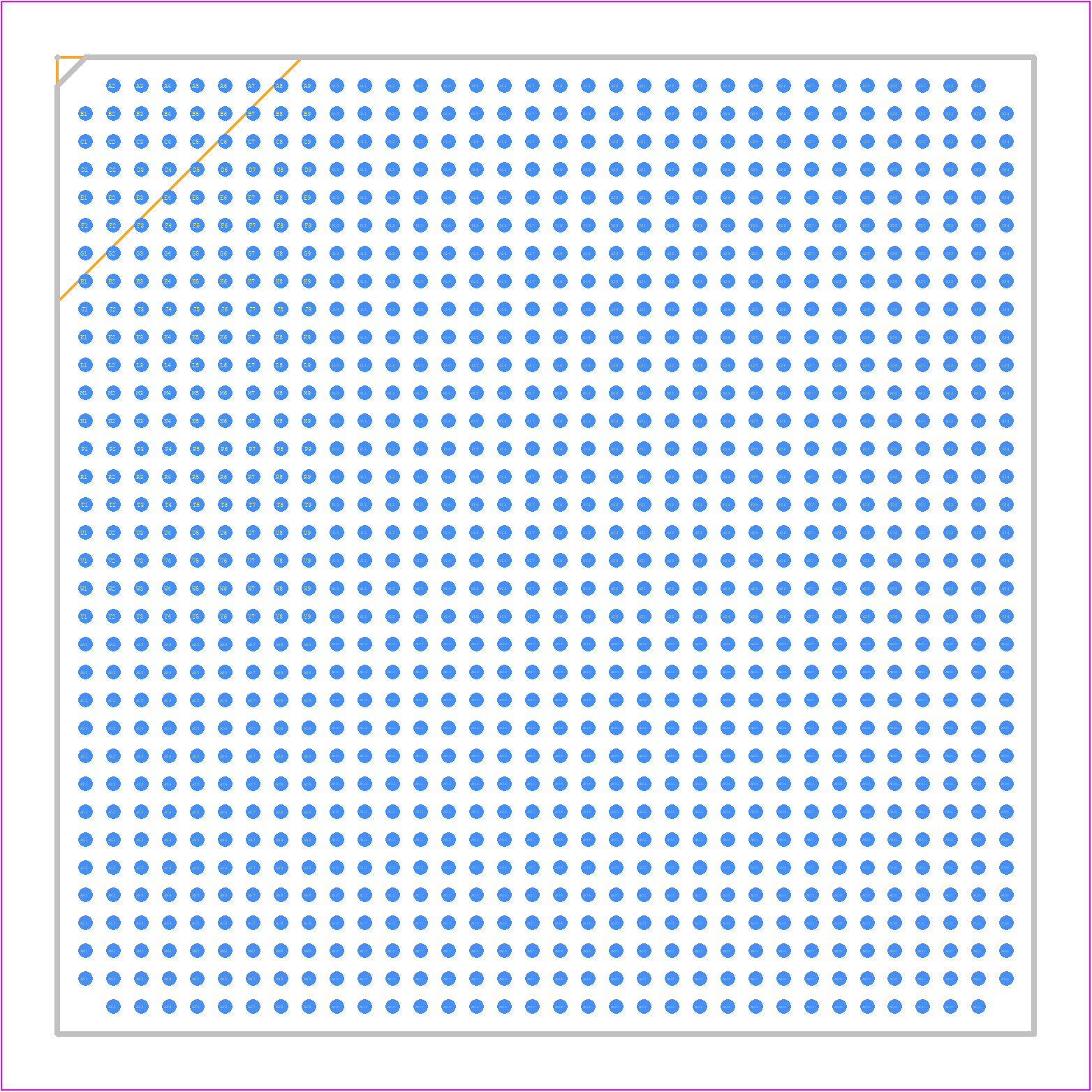

Use the download button to access the 10AX032H2F35E2SG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10AX0,
or try a keyword search, such as Field Programmable Gate Arrays
