10AX048H2F34I3SG - Intel

Description: 1152-pin Flip-Chip BGA

Download 10AX048H2F34I3SG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

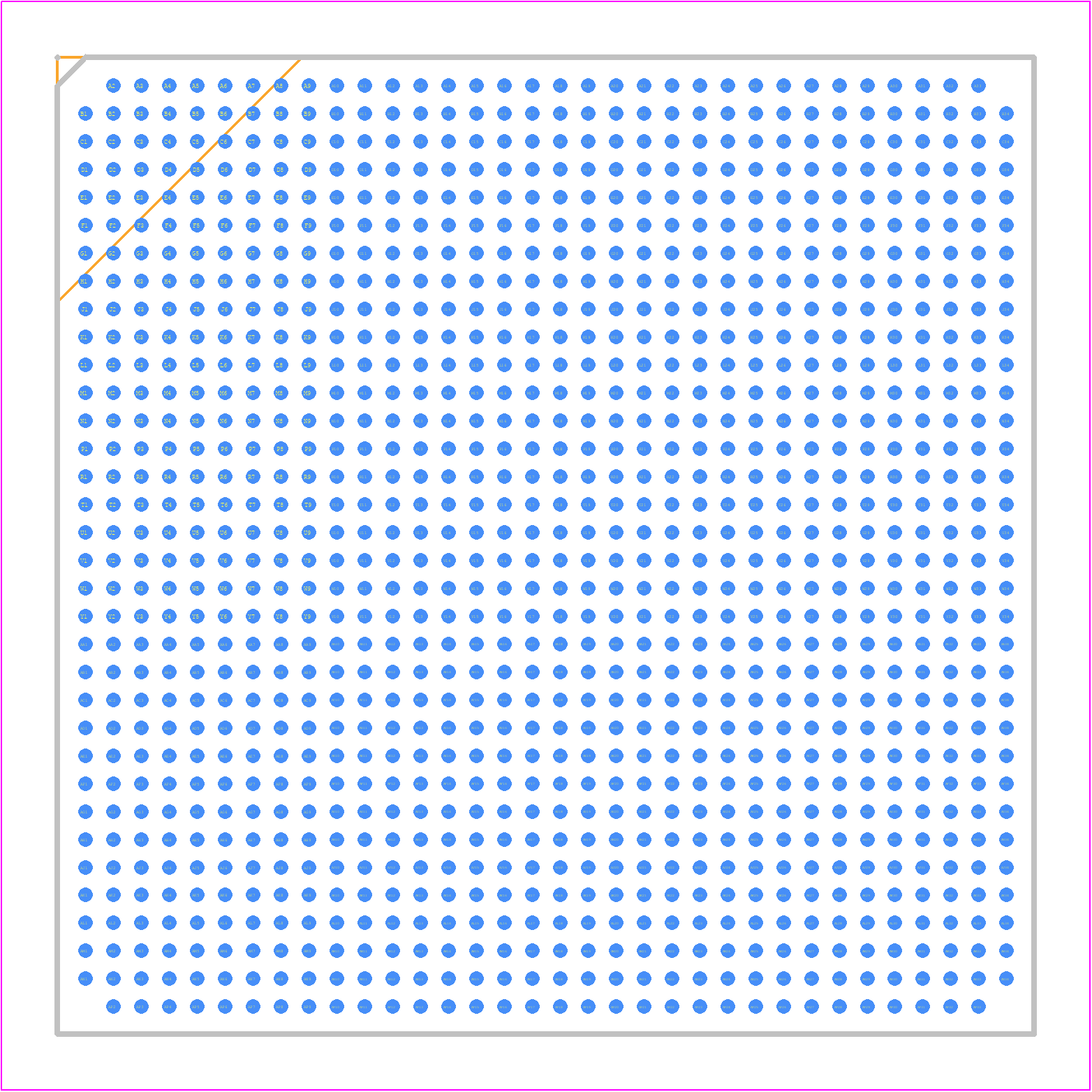

10AX048H2F34I3SG - Intel PCB footprint - BGA - BGA - 1152-Pin FBGA - Flip Chip - Flat Top SPL - A:3.50
click to zoom
3D Models
10AX048H2F34I3SG - Intel  - 3D model - BGA - 1152-Pin FBGA - Flip Chip - Flat Top SPL - A:3.50
click to zoom

10AX048H2F34I3SG Details

  • Manufacturer Part Number:

    10AX048H2F34I3SG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    FBGA-1152

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    9.15

  • JESD-30 Code:

    S-PBGA-B1152

  • Length:

    34 mm

  • Number of CLBs:

    18359

  • Number of Inputs:

    492

  • Number of Logic Cells:

    480000

  • Number of Outputs:

    492

  • Number of Terminals:

    1152

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    18359 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA1152,34X34,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    3.35 mm

  • Supply Voltage-Max:

    0.93 V

  • Supply Voltage-Min:

    0.87 V

  • Supply Voltage-Nom:

    0.9 V

  • Surface Mount:

    YES

  • Technology:

    20 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    34 mm
