Intel provides a PCB design guide for the 10AX048H4F34I3LG FPGA, which includes recommendations for PCB layout, stackup, and signal routing to ensure optimal signal integrity. The guide can be found on Intel's website.
Intel provides a power management guide for the 10AX048H4F34I3LG FPGA, which includes recommendations for power supply design, voltage regulation, and thermal management. Additionally, Intel's PowerPlay Early Power Estimator (EPE) tool can be used to estimate power consumption and optimize power management.
Intel provides a clocking and PLL user guide for the 10AX048H4F34I3LG FPGA, which includes recommendations for clocking architecture, PLL configuration, and clock domain crossing. Additionally, Intel's Quartus II software provides a clocking wizard to help configure the FPGA's clocking and PLLs.
Intel provides a configuration and boot user guide for the 10AX048H4F34I3LG FPGA, which includes recommendations for configuration modes, boot mechanisms, and error detection and correction. Additionally, Intel's Quartus II software provides tools and wizards to help configure and boot the FPGA.
Intel provides a high-speed transceiver user guide for the 10AX048H4F34I3LG FPGA, which includes recommendations for transceiver configuration, signal integrity, and channel bonding. Additionally, Intel's Quartus II software provides tools and wizards to help configure and optimize the transceivers.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
10AX048H4F34I3LG Overview

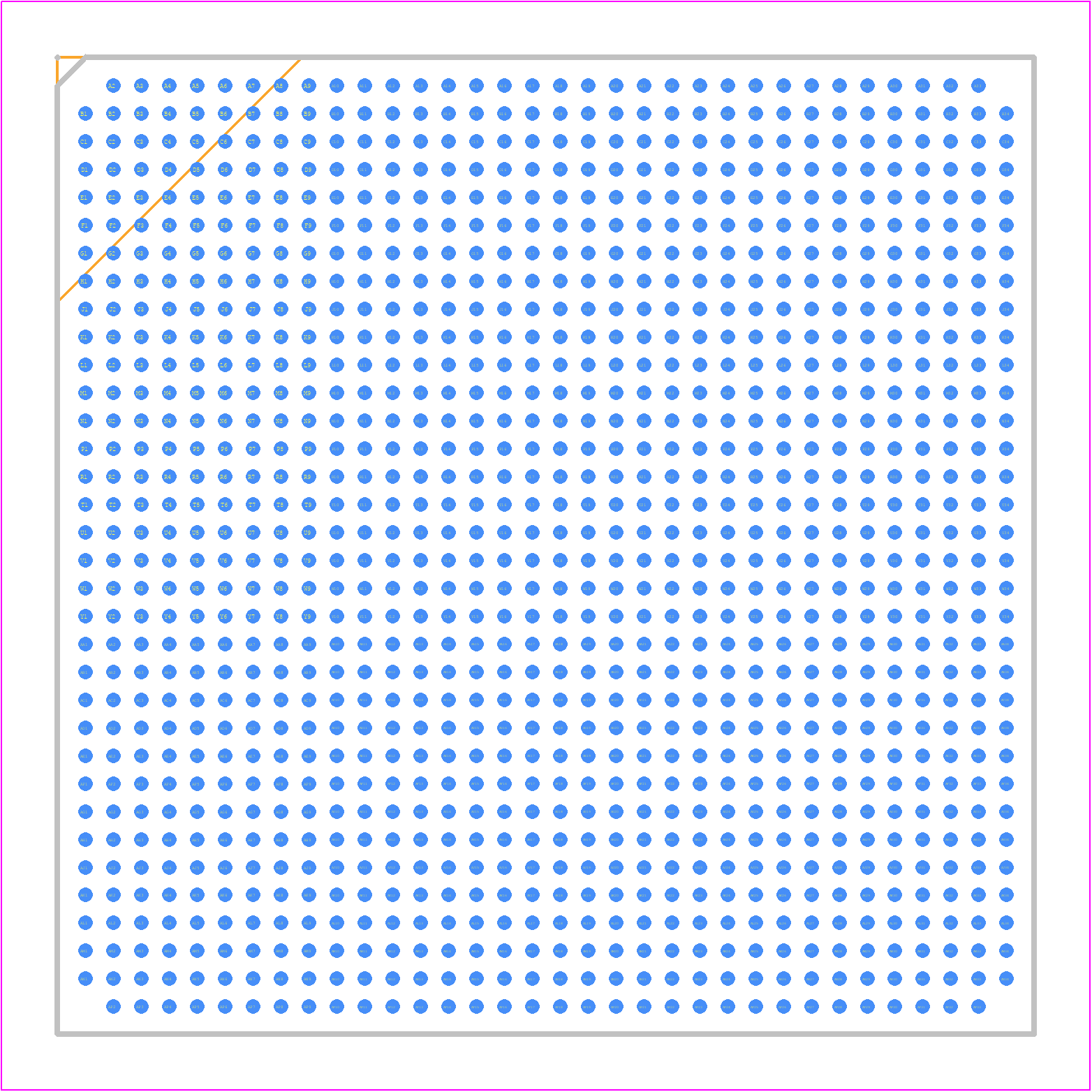

Use the download button to access the 10AX048H4F34I3LG schematic symbol, PCB footprint, and 3D model.
