Intel provides a PCB design guide for the 10AX066H2F34E1HG FPGA, which includes recommendations for PCB layout, stackup, and signal routing to ensure optimal signal integrity. The guide can be found on Intel's website.
Intel provides a power management guide for the 10AX066H2F34E1HG FPGA, which includes recommendations for power supply design, voltage regulation, and thermal management. Additionally, Intel's PowerPlay Early Power Estimator (EPE) tool can be used to estimate power consumption and optimize power management.
Intel provides a clocking and PLL user guide for the 10AX066H2F34E1HG FPGA, which includes recommendations for clocking architecture, PLL configuration, and clock domain crossing. Additionally, Intel's Quartus II software provides a clocking wizard to help configure the FPGA's clocking and PLLs.
Intel provides a configuration and boot user guide for the 10AX066H2F34E1HG FPGA, which includes recommendations for configuration modes, boot mechanisms, and error detection and correction. Additionally, Intel's Quartus II software provides tools to generate configuration files and verify boot functionality.
Intel provides a high-speed transceiver user guide for the 10AX066H2F34E1HG FPGA, which includes recommendations for transceiver configuration, signal integrity, and channel bonding. Additionally, Intel's Quartus II software provides tools to configure and verify transceiver operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
10AX066H2F34E1HG Overview

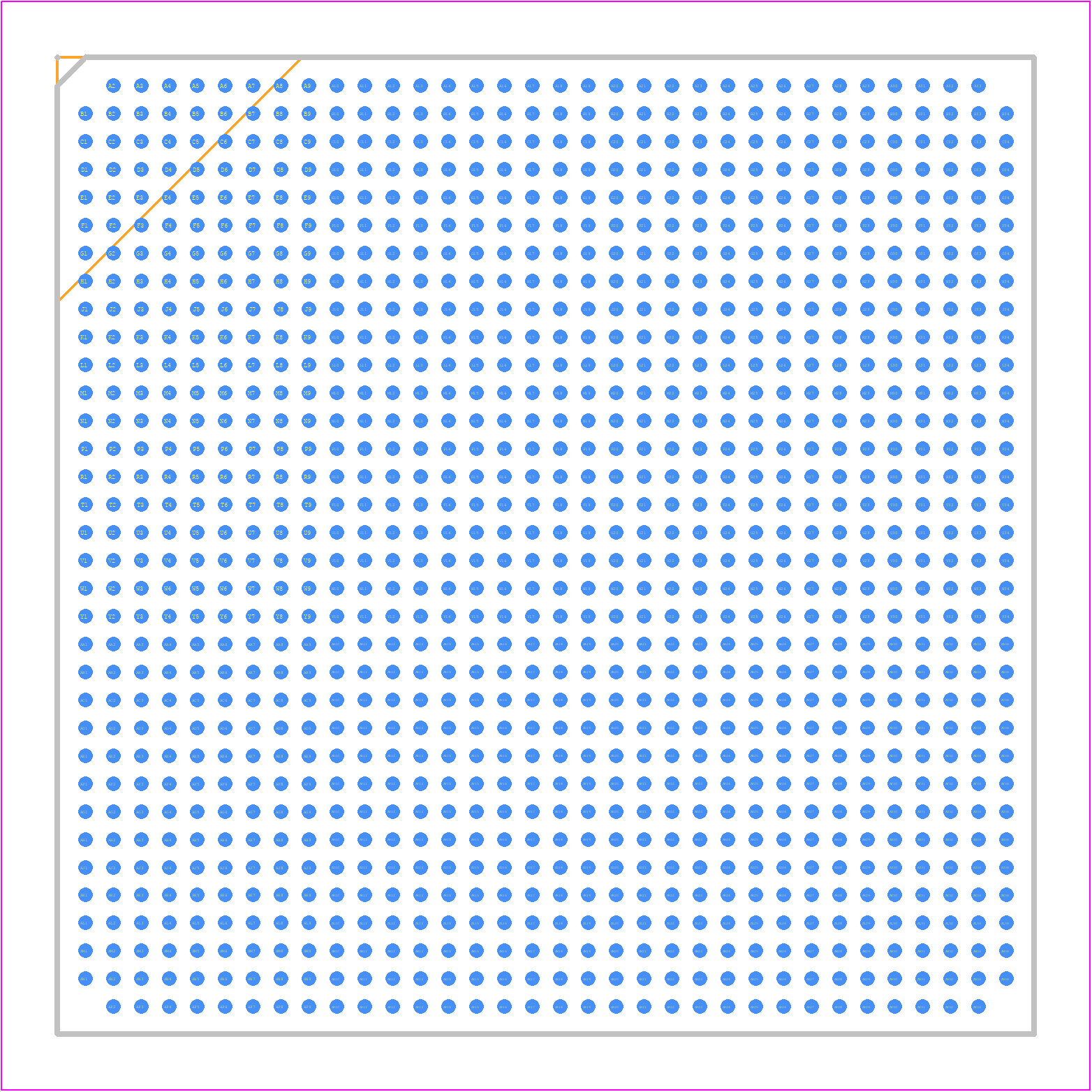

Use the download button to access the 10AX066H2F34E1HG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10AX0,
or try a keyword search, such as Field Programmable Gate Arrays
