10AX066N2F40I2LG - Intel

Description: FPGA Arria® 10 GX Family 660000 Cells 20nm Technology 0.9V Medical 1517-Pin FC-FBGA

Download 10AX066N2F40I2LG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
10AX066N2F40I2LG - Intel - PCB symbol
click to zoom
PCB Footprints

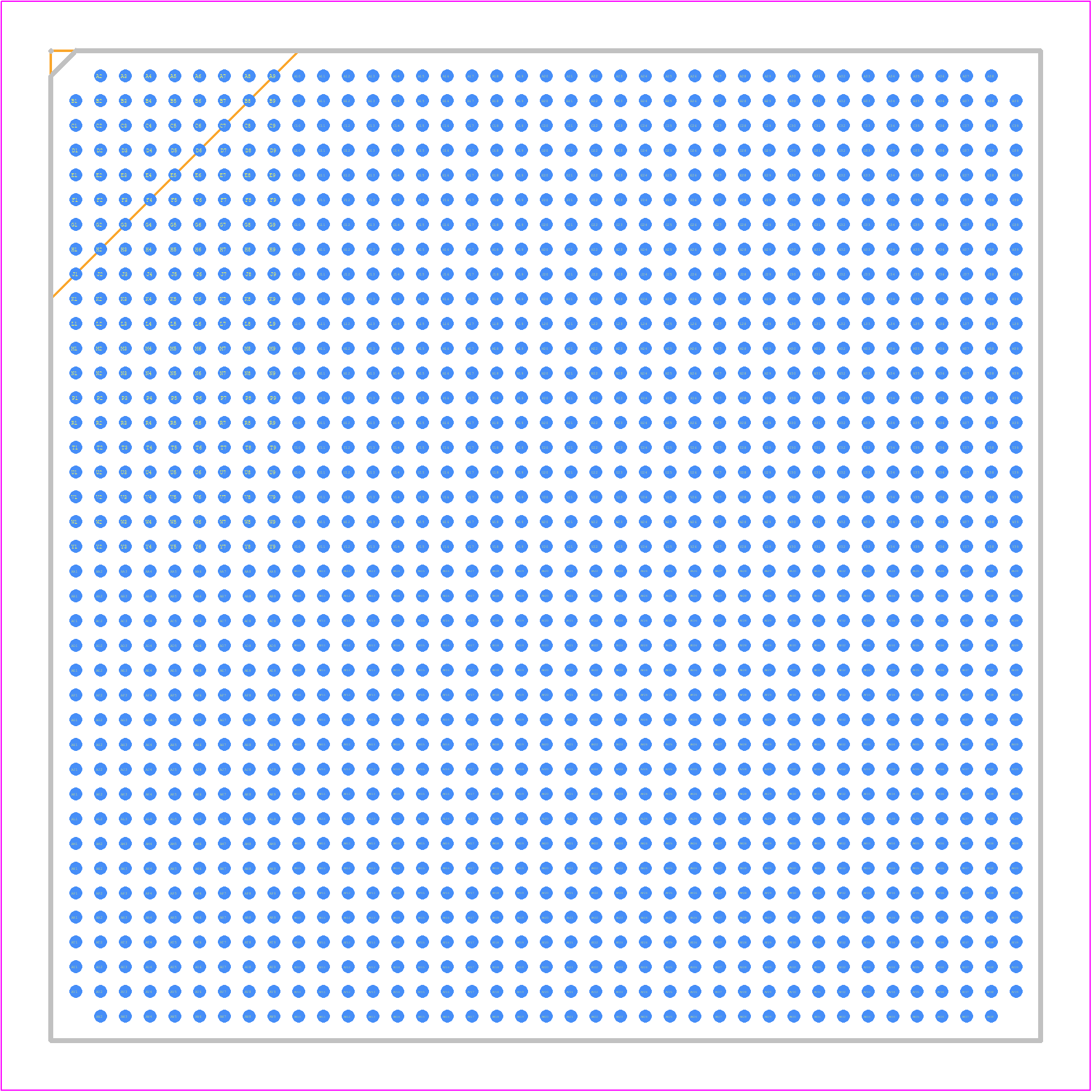

10AX066N2F40I2LG - Intel PCB footprint - BGA - BGA - 1517-Pin FineLine Ball-Grid Array (FBGA) - Flip Chip- Flat Top Single-Piece Lid - A:3.35
click to zoom
3D Models
10AX066N2F40I2LG - Intel - 3D model - BGA - 1517-Pin FineLine Ball-Grid Array (FBGA) - Flip Chip- Flat Top Single-Piece Lid - A:3.35
click to zoom

10AX066N2F40I2LG Details

  • Manufacturer Part Number:

    10AX066N2F40I2LG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    FBGA-1517

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    9.15

  • Additional Feature:

    ALSO OPERATES AT 0.95V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PBGA-B1517

  • Length:

    40 mm

  • Number of CLBs:

    25168

  • Number of Inputs:

    588

  • Number of Logic Cells:

    660000

  • Number of Outputs:

    588

  • Number of Terminals:

    1517

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    25168 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA1517,39X39,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.35 mm

  • Supply Voltage-Max:

    0.93 V

  • Supply Voltage-Min:

    0.87 V

  • Supply Voltage-Nom:

    0.9 V

  • Surface Mount:

    YES

  • Technology:

    20 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    40 mm

10AX066N2F40I2LG Frequently Asked Questions (FAQs)

  • The maximum power consumption of the 10AX066N2F40I2LG is approximately 12W, but it can vary depending on the specific design, clock frequency, and operating conditions.
  • To optimize the 10AX066N2F40I2LG for low power consumption, use the Intel Quartus Prime Power Analyzer tool to identify power-hungry components, reduce clock frequencies, use power-gating, and implement dynamic voltage and frequency scaling.
  • The maximum operating temperature of the 10AX066N2F40I2LG is 100°C (212°F), but it's recommended to operate within the commercial temperature range of 0°C to 85°C (32°F to 185°F) for optimal performance and reliability.
  • No, the 10AX066N2F40I2LG is not a radiation-hardened device and is not suitable for use in high-radiation environments, such as space or nuclear applications.
  • The maximum data transfer rate of the 10AX066N2F40I2LG's transceivers is 12.5 Gbps, but it can be configured to support lower data rates depending on the specific application requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

10AX066N2F40I2LG Overview

Use the download button to access the 10AX066N2F40I2LG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10AX0, or try a keyword search, such as Field Programmable Gate Arrays

Suggested Parts

If you searched for 10AX066N2F40I2LG, you might also be interested in these parts:
Part Number
10AX016C4U19E3SG
10AX032E4F27I3SG
10AX115H3F34E2SG
10AX115S2F45E2LG
10AX027E4F29E3SG
10AX048K3F35I2SG
10AT115S2F45E2SG
10AX016E4F27E3SG
10AX016E4F29E3SG
10AX027E3F29E2SG

Parts related to 10AX066N2F40I2LG

Showing 0 results
