10AX115S2F45I1SG - Intel

Description: Arria 10 GX Field Programmable Gate Array (FPGA) IC 624 68857856 1150000 1932-BBGA, FCBGA Voltage - Supply 0.87V ~ 0.98V, Temperature -40°C ~ 100°C (TJ)

Download 10AX115S2F45I1SG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

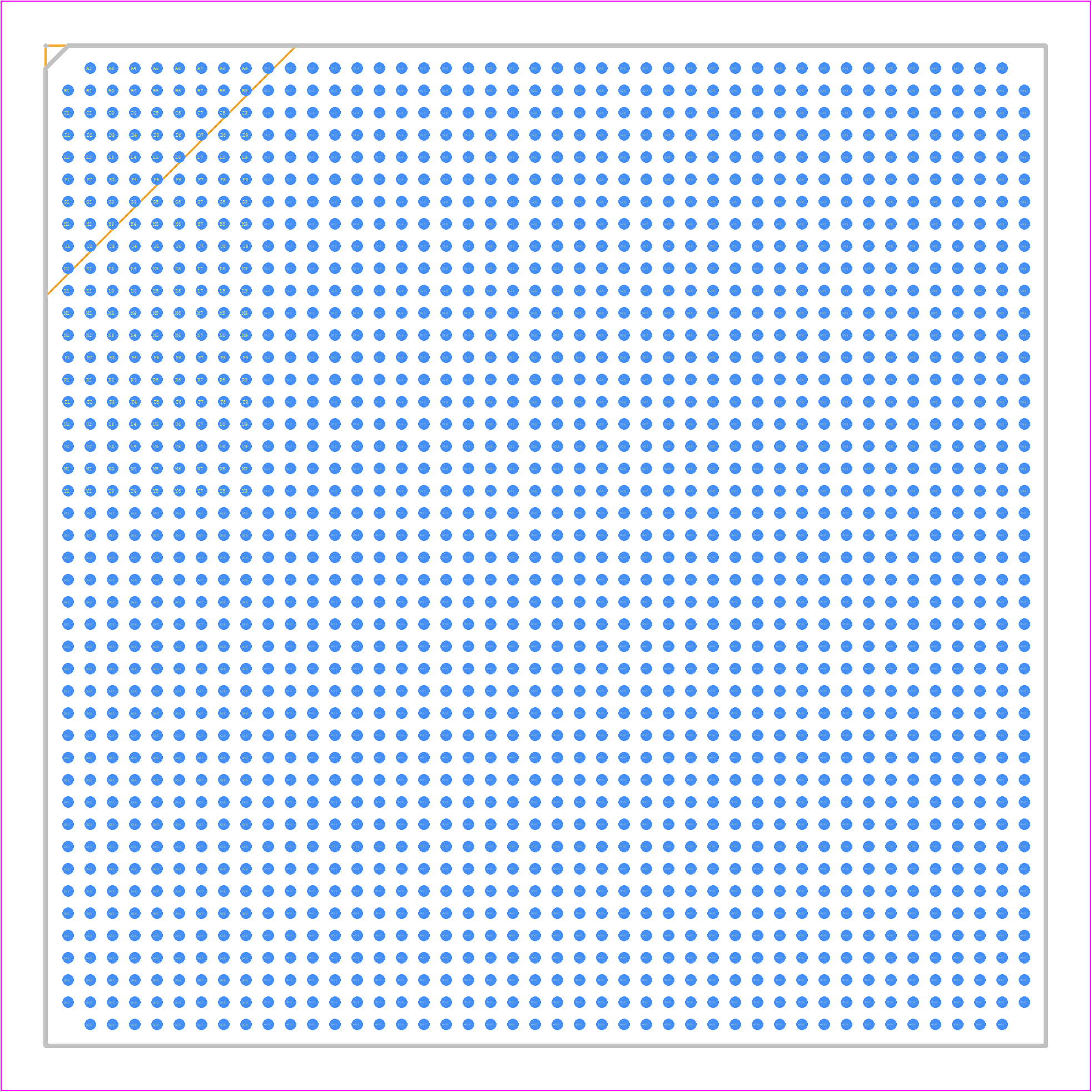

10AX115S2F45I1SG - Intel PCB footprint - BGA - BGA - 1932-Pin FineLine Ball-Grid Array (FBGA) - Flip Chip - Flat Top Single-Piece Lid - A:3.50
click to zoom
3D Models
10AX115S2F45I1SG - Intel  - 3D model - BGA - 1932-Pin FineLine Ball-Grid Array (FBGA) - Flip Chip - Flat Top Single-Piece Lid - A:3.50
click to zoom

10AX115S2F45I1SG Details

  • Manufacturer Part Number:

    10AX115S2F45I1SG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    FBGA-1932

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    9.15

  • Additional Feature:

    ALSO OPERATES AT 0.95V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PBGA-B1932

  • Length:

    45 mm

  • Number of CLBs:

    42720

  • Number of Inputs:

    624

  • Number of Logic Cells:

    1150000

  • Number of Outputs:

    624

  • Number of Terminals:

    1932

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    42720 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA1932,44X44,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    3.5 mm

  • Supply Voltage-Max:

    0.93 V

  • Supply Voltage-Min:

    0.87 V

  • Supply Voltage-Nom:

    0.9 V

  • Surface Mount:

    YES

  • Technology:

    20 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    45 mm

10AX115S2F45I1SG Frequently Asked Questions (FAQs)

  • The maximum power consumption of the 10AX115S2F45I1SG is approximately 12W, but this can vary depending on the specific design and usage.
  • Intel provides a DDR3 memory interface IP core that can be used to implement a DDR3 memory interface on the 10AX115S2F45I1SG. The IP core is available through the Intel Quartus Prime software.
  • Yes, the 10AX115S2F45I1SG has high-speed transceivers that can be used to implement PCIe and SATA interfaces, among others. Intel provides IP cores and design examples to help with the implementation.
  • To optimize the 10AX115S2F45I1SG for low power consumption, use the Intel Quartus Prime software to enable power-saving features like clock gating, voltage scaling, and dynamic voltage and frequency scaling. Additionally, use low-power design techniques like pipelining and parallel processing.
  • Yes, the 10AX115S2F45I1SG has built-in cryptographic primitives like AES and SHA-256, and Intel provides IP cores and design examples for cryptographic applications like secure boot and secure communication protocols.
