10CL006YE144C8G - Intel

Description: FPGA - Field Programmable Gate Array

Download 10CL006YE144C8G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

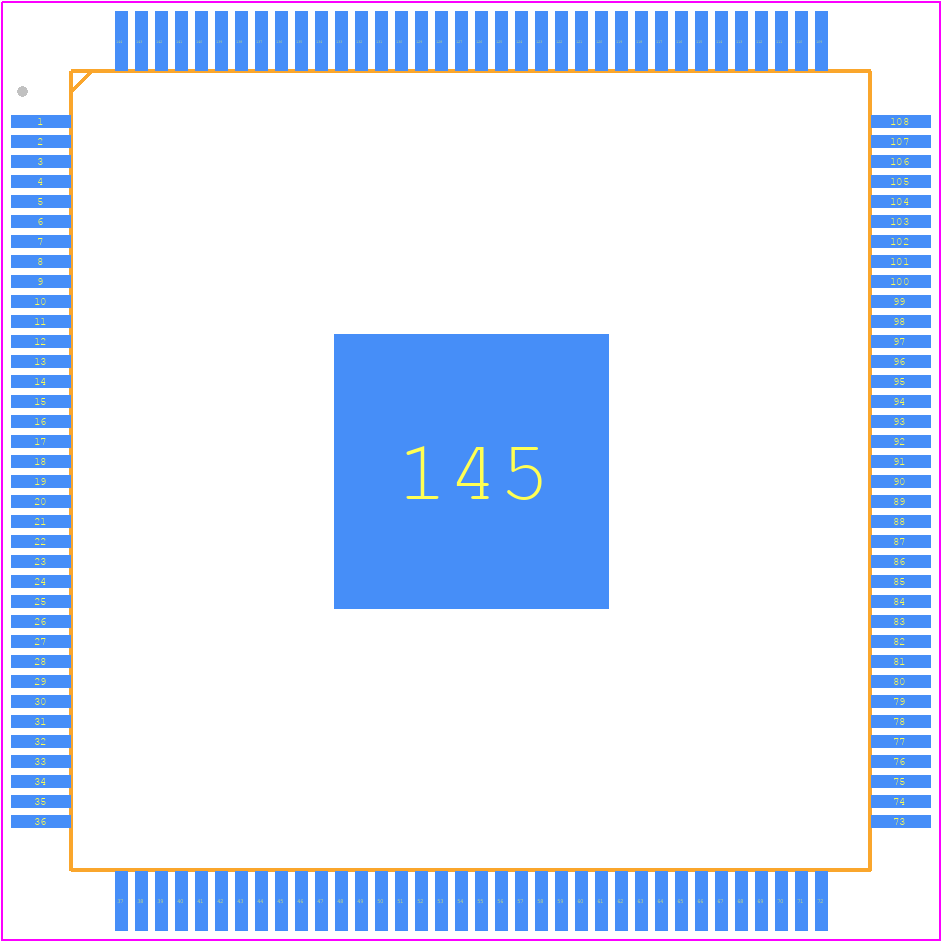

10CL006YE144C8G - Intel PCB footprint - Quad Flat Packages - Quad Flat Packages - 144-Pin Plastic Enhanced Quad Flat Pack (EQFP) - Wire Bond - A:1.65 - D2:6.7
click to zoom
3D Models
10CL006YE144C8G - Intel  - 3D model - Quad Flat Packages - 144-Pin Plastic Enhanced Quad Flat Pack (EQFP) - Wire Bond - A:1.65 - D2:6.7
click to zoom

10CL006YE144C8G Details

  • Manufacturer Part Number:

    10CL006YE144C8G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    EQFP-144

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    9

  • JESD-30 Code:

    S-PQFP-G144

  • Length:

    20 mm

  • Number of CLBs:

    392

  • Number of Inputs:

    88

  • Number of Outputs:

    88

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    85 °C

  • Organization:

    392 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1.65 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    60 nm

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    20 mm

10CL006YE144C8G Frequently Asked Questions (FAQs)

  • The maximum power consumption of the 10CL006YE144C8G is approximately 2.5W, but this can vary depending on the specific use case and design implementation.
  • To implement a CDC in the 10CL006YE144C8G, you can use Intel's recommended CDC techniques, such as using asynchronous FIFOs, gray code counters, or synchronizer circuits. You can also use Intel's IP cores, such as the CDC IP, to simplify the implementation.
  • The maximum frequency of the 10CL006YE144C8G depends on the specific device grade and speed grade. For the -C8G speed grade, the maximum frequency is approximately 300 MHz.
  • To optimize the 10CL006YE144C8G for low power consumption, you can use various techniques such as clock gating, power gating, and voltage scaling. You can also use Intel's PowerPlay power analysis tool to identify areas of high power consumption and optimize your design accordingly.
  • The main difference between the 10CL006YE144C8G and the 10CL006YE144I7G is the operating temperature range. The 10CL006YE144C8G has a commercial temperature range of 0°C to 85°C, while the 10CL006YE144I7G has an industrial temperature range of -40°C to 100°C.
