The maximum operating temperature range for the 10CL010YU256C6G is -40°C to 100°C.
To implement a CDC in the 10CL010YU256C6G, use the Intel FPGA IP Clock Domain Crossing (CDC) IP core, which provides a reliable and efficient way to transfer data between clock domains.
The maximum frequency achievable with the 10CL010YU256C6G depends on the specific design and implementation, but Intel claims a maximum clock frequency of up to 500 MHz.
To optimize power consumption in your design, use Intel's Power Analyzer tool, which provides detailed power estimates and recommendations for power reduction. Additionally, consider using low-power modes, clock gating, and voltage scaling.
Yes, the 10CL010YU256C6G is suitable for high-reliability applications, such as aerospace, defense, and industrial control systems, due to its robust design and manufacturing process.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
10CL010YU256C6G Overview

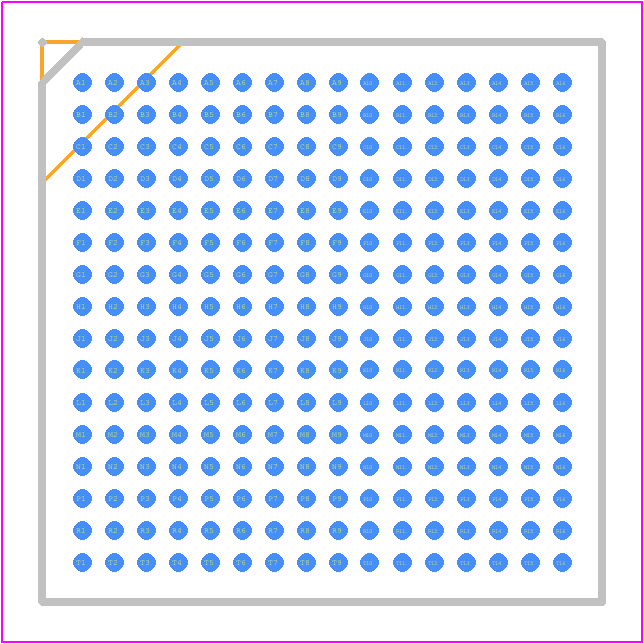

Use the download button to access the 10CL010YU256C6G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10CL0,
or try a keyword search, such as Field Programmable Gate Arrays
