10CL010YU256C8G - Intel

10CL010YU256C8G Details

• Manufacturer Part Number:

  10CL010YU256C8G

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

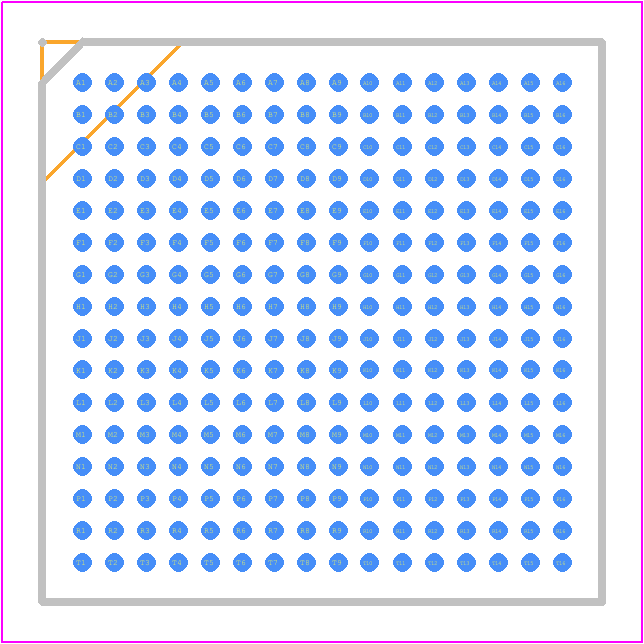

• Package Description:

  UBGA-256

• Country Of Origin:

  Mainland China, Malaysia, Taiwan, USA, Vietnam

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Intel Corporation

• YTEOL:

  9

• JESD-30 Code:

  S-PBGA-B256

• Length:

  14 mm

• Number of CLBs:

  645

• Number of Inputs:

  176

• Number of Outputs:

  176

• Number of Terminals:

  256

• Operating Temperature-Max:

  85 °C

• Organization:

  645 CLBS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA256,16X16,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Seated Height-Max:

  1.5 mm

• Supply Voltage-Max:

  1.25 V

• Supply Voltage-Min:

  1.15 V

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Technology:

  60 nm

• Temperature Grade:

  OTHER

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  14 mm
