10CL016YU256C6G footprint, schematic symbol and 3D model by Intel

Symbol

click to zoom

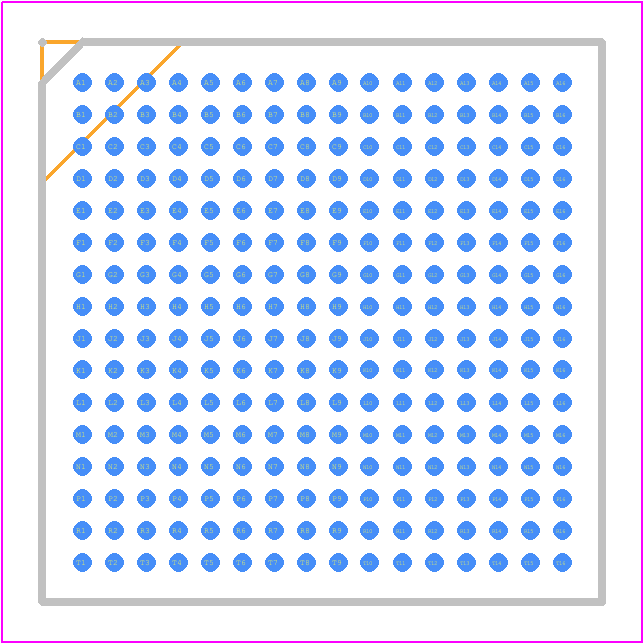

PCB Footprints

10CL016YU256C6G - Intel PCB footprint - BGA - BGA - 256-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.50

click to zoom

3D Models

10CL016YU256C6G - Intel - 3D model - BGA - 256-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.50

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 10CL016YU256C6G
Part Number 10CL016YU256C6G
Manufacturer Intel
Pin Count 256
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 256-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.50
Released Date Apr 14, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

10CL016YU256C6G Details

Manufacturer Part Number:
10CL016YU256C6G
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
UBGA-256
Country Of Origin:
Mainland China, Malaysia, Taiwan, USA, Vietnam
HTS Code:
8542.39.00.01
Manufacturer:
Intel Corporation
YTEOL:
9
JESD-30 Code:
S-PBGA-B256
Length:
14 mm
Number of CLBs:
963
Number of Inputs:
162
Number of Outputs:
162
Number of Terminals:
256
Operating Temperature-Max:
85 °C
Organization:
963 CLBS
Package Body Material:
PLASTIC/EPOXY
Package Code:
LFBGA
Package Equivalence Code:
BGA256,16X16,32
Package Shape:
SQUARE
Package Style:
GRID ARRAY, LOW PROFILE, FINE PITCH
Programmable Logic Type:
FIELD PROGRAMMABLE GATE ARRAY
Seated Height-Max:
1.5 mm
Supply Voltage-Max:
1.25 V
Supply Voltage-Min:
1.15 V
Supply Voltage-Nom:
1.2 V
Surface Mount:
YES
Technology:
60 nm
Temperature Grade:
OTHER
Terminal Form:
BALL
Terminal Pitch:
0.8 mm
Terminal Position:
BOTTOM
Width:
14 mm

10CL016YU256C6G Frequently Asked Questions (FAQs)

The maximum power consumption of the 10CL016YU256C6G is approximately 2.5W, but this can vary depending on the specific application and usage.
To implement a CDC in the 10CL016YU256C6G, you can use the Intel FPGA IP Catalog to generate a CDC module, or use a third-party IP core. You can also use the FPGA's built-in clock management features to synchronize clocks across domains.
The maximum frequency of the 10CL016YU256C6G depends on the specific application and usage, but it can operate at frequencies up to 500 MHz.
To optimize the 10CL016YU256C6G for low power consumption, you can use power-aware design techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling. You can also use the Intel FPGA Power Analyzer tool to identify areas of high power consumption and optimize accordingly.
The 10CL016YU256C6G has a total of 256 I/O pins available, but the actual number of available I/O pins depends on the specific package and configuration.

Trust Checks

Community Provided

System Verified

Community Approved

10CL016YU256C6G Overview

Use the download button to access the 10CL016YU256C6G schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 10CL0, or try a keyword search, such as Field Programmable Gate Arrays
