10CL016YU256C8G - Intel

Description: FPGA - Field Programmable Gate Array

Download 10CL016YU256C8G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
10CL016YU256C8G - Intel - PCB symbol
click to zoom
PCB Footprints

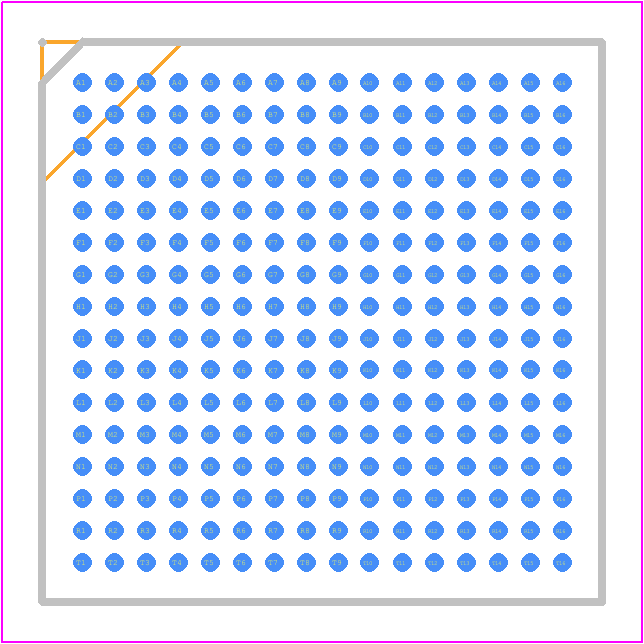

10CL016YU256C8G - Intel PCB footprint - BGA - BGA - UBGA256
click to zoom
3D Models
10CL016YU256C8G - Intel - 3D model - BGA - UBGA256
click to zoom

10CL016YU256C8G Details

  • Manufacturer Part Number:

    10CL016YU256C8G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    UBGA-256

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B256

  • Length:

    14 mm

  • Number of CLBs:

    963

  • Number of Inputs:

    162

  • Number of Outputs:

    162

  • Number of Terminals:

    256

  • Operating Temperature-Max:

    85 °C

  • Organization:

    963 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA256,16X16,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    60 nm

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    14 mm

10CL016YU256C8G Frequently Asked Questions (FAQs)

  • The maximum power consumption of the 10CL016YU256C8G is approximately 2.5W, but this can vary depending on the specific application and usage.
  • To implement a CDC in the 10CL016YU256C8G, you can use the Intel Quartus Prime software to create a clock domain crossing circuit, which involves using a synchronizer or a FIFO to transfer data between clock domains.
  • The maximum frequency of the 10CL016YU256C8G is approximately 500 MHz, but this can vary depending on the specific application and usage.
  • To optimize the 10CL016YU256C8G for low power consumption, you can use various techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS) using the Intel Quartus Prime software.
  • The 10CL016YU256C8G has a total of 16,256 logic elements (LEs) available.
