10CL016YU256I7G footprint, schematic symbol and 3D model by Intel

Symbol

click to zoom

PCB Footprints

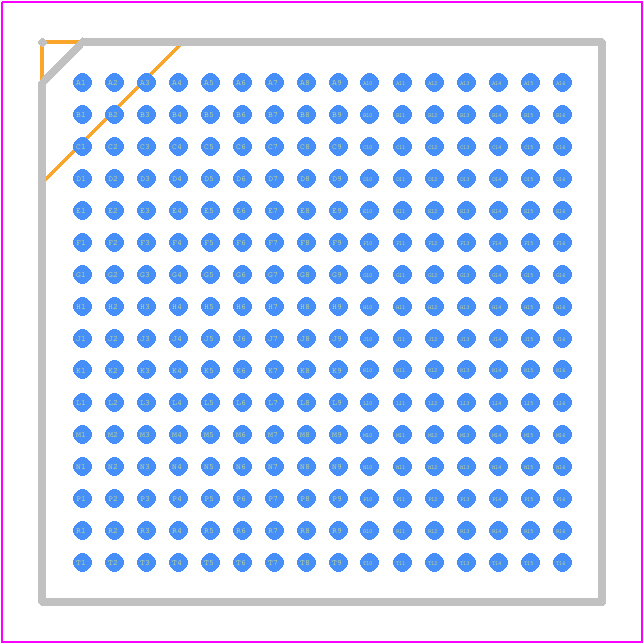

10CL016YU256I7G - Intel PCB footprint - BGA - BGA - 256-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.50

click to zoom

3D Models

10CL016YU256I7G - Intel - 3D model - BGA - 256-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.50

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 10CL016YU256I7G
Part Number 10CL016YU256I7G
Manufacturer Intel
Pin Count 256
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 256-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.50
Released Date Oct 28, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

10CL016YU256I7G Details

Manufacturer Part Number:
10CL016YU256I7G
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
UBGA-256
Country Of Origin:
Mainland China, Malaysia, Taiwan, USA, Vietnam
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Intel Corporation
YTEOL:
9
JESD-30 Code:
S-PBGA-B256
Length:
14 mm
Number of CLBs:
963
Number of Inputs:
162
Number of Outputs:
162
Number of Terminals:
256
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Organization:
963 CLBS
Package Body Material:
PLASTIC/EPOXY
Package Code:
LFBGA
Package Equivalence Code:
BGA256,16X16,32
Package Shape:
SQUARE
Package Style:
GRID ARRAY, LOW PROFILE, FINE PITCH
Programmable Logic Type:
FIELD PROGRAMMABLE GATE ARRAY
Seated Height-Max:
1.5 mm
Supply Voltage-Max:
1.25 V
Supply Voltage-Min:
1.15 V
Supply Voltage-Nom:
1.2 V
Surface Mount:
YES
Technology:
60 nm
Temperature Grade:
INDUSTRIAL
Terminal Form:
BALL
Terminal Pitch:
0.8 mm
Terminal Position:
BOTTOM
Width:
14 mm

10CL016YU256I7G Frequently Asked Questions (FAQs)

The maximum power consumption of the 10CL016YU256I7G is approximately 2.5W, but this can vary depending on the specific application and usage.
To implement a CDC in the 10CL016YU256I7G, you can use the Intel Quartus Prime software to create a clock domain crossing circuit, which involves synchronizing data between two clock domains using a synchronizer or a FIFO.
The maximum frequency of the 10CL016YU256I7G is approximately 500 MHz, but this can vary depending on the specific application and usage.
To optimize the 10CL016YU256I7G for low power consumption, you can use various techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS), as well as optimizing the design for low power using the Intel Quartus Prime software.
The 10CL016YU256I7G has a total of 15,400 logic elements (LEs) available, which can be used to implement digital logic circuits.

Trust Checks

Community Provided

System Verified

Community Approved

10CL016YU256I7G Overview

Use the download button to access the 10CL016YU256I7G schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 10CL0, or try a keyword search, such as Field Programmable Gate Arrays
