10CL040ZU484I7G - Intel

10CL040ZU484I7G Details

• Manufacturer Part Number:

  10CL040ZU484I7G

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

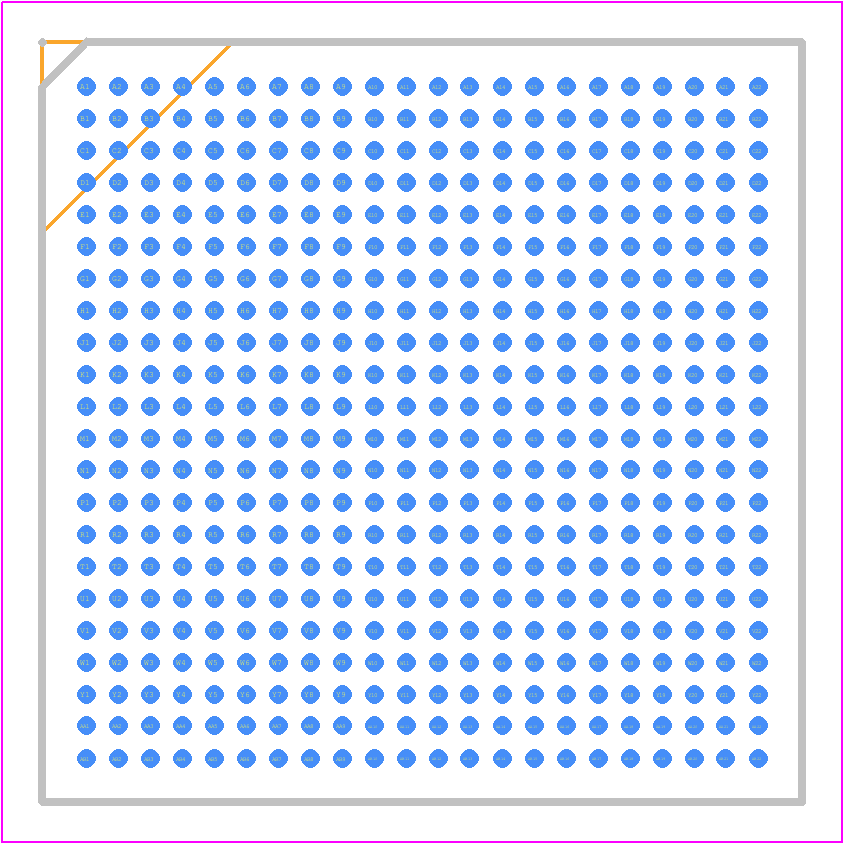

• Package Description:

  UBGA-484

• HTS Code:

  8542.31.00.60

• Date Of Intro:

  2020-05-21

• Manufacturer:

  Intel Corporation

• YTEOL:

  9

• Additional Feature:

  -40 TO 125 TEMPERATURE RANGE IS AVAILABLE AS EXTENDED INDUSTRIAL

• JESD-30 Code:

  S-PBGA-B484

• Length:

  19 mm

• Number of CLBs:

  2475

• Number of Inputs:

  325

• Number of Logic Cells:

  39600

• Number of Outputs:

  325

• Number of Terminals:

  484

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  2475 CLBS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FBGA

• Package Equivalence Code:

  BGA484,22X22,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, FINE PITCH

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Seated Height-Max:

  2.05 mm

• Supply Voltage-Max:

  1.03 V

• Supply Voltage-Min:

  0.97 V

• Supply Voltage-Nom:

  1 V

• Surface Mount:

  YES

• Technology:

  60 nm

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  19 mm
