Intel provides a PCB design guide for the 10CX150YU484I6G, which recommends a 4-6 layer stackup with a minimum of 2 mils (0.05 mm) spacing between layers. Additionally, Intel suggests using a signal layer, a power layer, and multiple ground layers to minimize noise and crosstalk.
To optimize power consumption, Intel recommends using the PowerPlay Early Power Estimator (EPE) tool, which provides an estimate of the FPGA's power consumption based on the design's resource utilization. Additionally, implementing power-saving techniques such as clock gating, dynamic voltage and frequency scaling, and using low-power modes can help reduce power consumption.
The 10CX150YU484I6G has a maximum junction temperature of 100°C. To ensure reliable operation, Intel recommends using a heat sink or thermal interface material to maintain a junction temperature below 85°C. Additionally, ensuring good airflow and using thermal simulation tools can help optimize thermal management.
To ensure reliable configuration and boot-up, Intel recommends using a robust configuration scheme, such as using a non-volatile memory device (e.g., flash) to store the FPGA's configuration data. Additionally, implementing a power-on reset (POR) circuit and using a reliable clock source can help ensure reliable boot-up.
To ensure EMI and EMC compliance, Intel recommends following good design practices, such as using shielding, filtering, and grounding techniques to minimize electromagnetic emissions. Additionally, using Intel's EMI modeling and simulation tools can help optimize the design for EMI and EMC compliance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
10CX150YU484I6G Overview

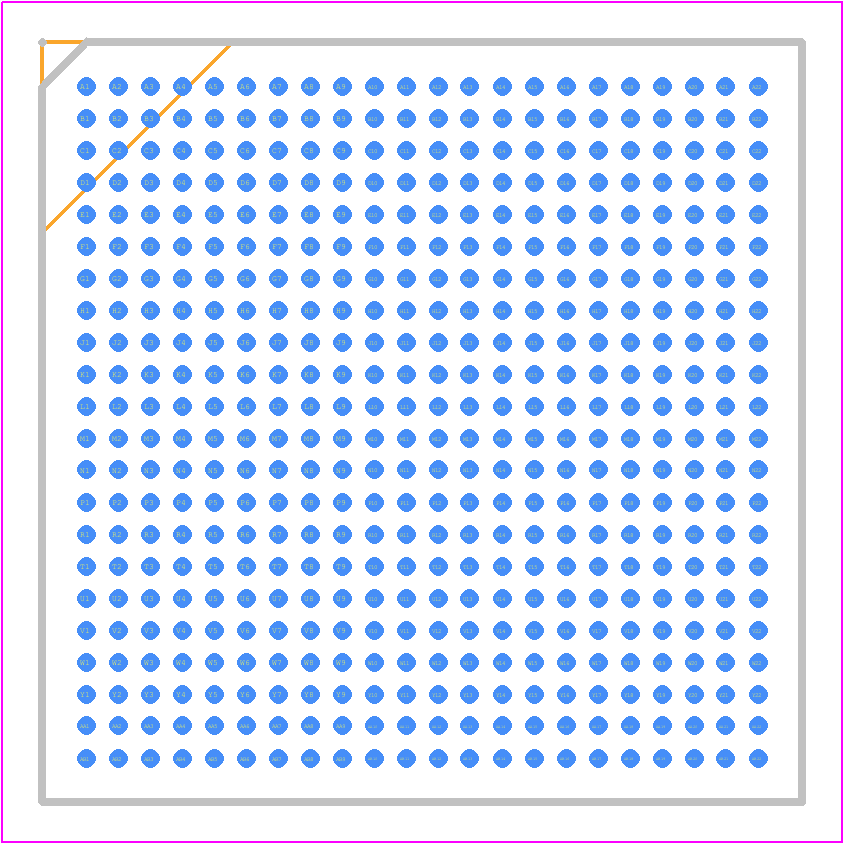

Use the download button to access the 10CX150YU484I6G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10CX1,
or try a keyword search, such as Field Programmable Gate Arrays
