Intel provides a PCB design guide for the 10M02SCU169C8G, which includes recommendations for PCB layout, routing, and thermal management. It's essential to follow these guidelines to ensure signal integrity and thermal performance.
To optimize power consumption, use the Intel Power Analyzer tool to estimate power consumption and identify areas for optimization. Implement power-saving techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling.
Ensure good airflow around the FPGA, use a heat sink or fan if necessary, and implement thermal management techniques such as thermal throttling and dynamic voltage and frequency scaling. Monitor the FPGA's temperature using the on-chip thermal sensor.
Use the Intel Signal Integrity Tool to analyze and optimize signal integrity. Implement signal integrity best practices such as using differential signaling, adding termination resistors, and minimizing signal routing distances.
The internal oscillator has a limited frequency range and accuracy. For high-frequency or high-accuracy clocking requirements, consider using an external oscillator or clock source.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
10M02SCU169C8G Overview

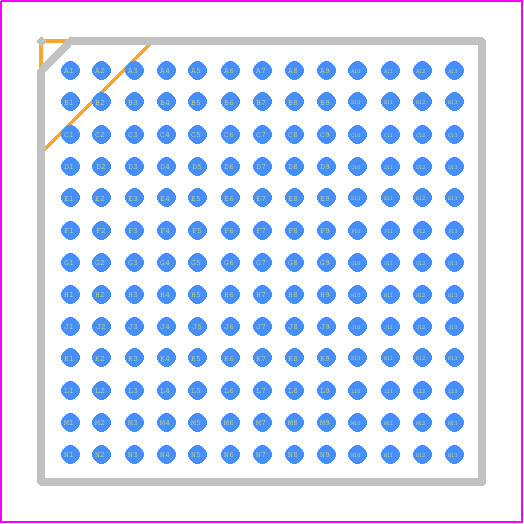

Use the download button to access the 10M02SCU169C8G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10M02,
or try a keyword search, such as Field Programmable Gate Arrays
