The maximum junction temperature for the 10M04SAU169I7G is 100°C, as specified in the datasheet.
To implement a CDC in the 10M04SAU169I7G, you can use Intel's recommended CDC techniques, such as using synchronizers, FIFOs, or gray counters. You can also use the Intel Quartus Prime software to help implement CDCs.
The power consumption of the 10M04SAU169I7G depends on the specific use case and design. However, according to the datasheet, the typical static power consumption is around 1.2W, and the dynamic power consumption can range from 1.5W to 3.5W depending on the clock frequency and toggle rate.
Yes, the 10M04SAU169I7G is suitable for high-reliability applications, such as aerospace, defense, and industrial control systems. It has been designed and tested to meet the requirements of these applications, including radiation tolerance and fault tolerance.
You can use Intel's SignalTap II logic analyzer and the Intel Quartus Prime software to debug and verify your design on the 10M04SAU169I7G. You can also use third-party tools, such as oscilloscopes and logic analyzers, to debug and verify your design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
10M04SAU169I7G Overview

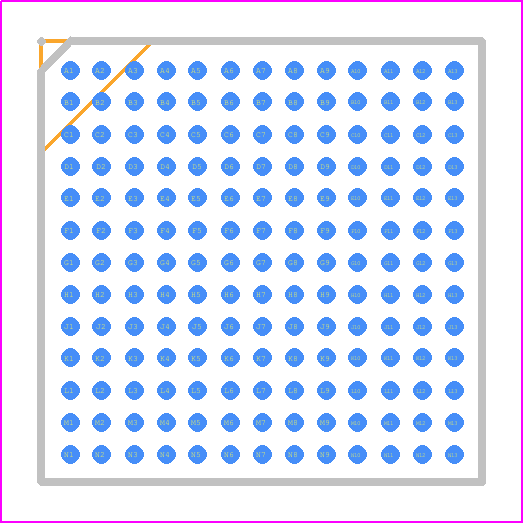

Use the download button to access the 10M04SAU169I7G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10M04,
or try a keyword search, such as Field Programmable Gate Arrays
