10M04SCU169I7G - Intel

Description: FPGA - Field Programmable Gate Array non-volatile FPGA, 130 I/O, 169UBGA

Download 10M04SCU169I7G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

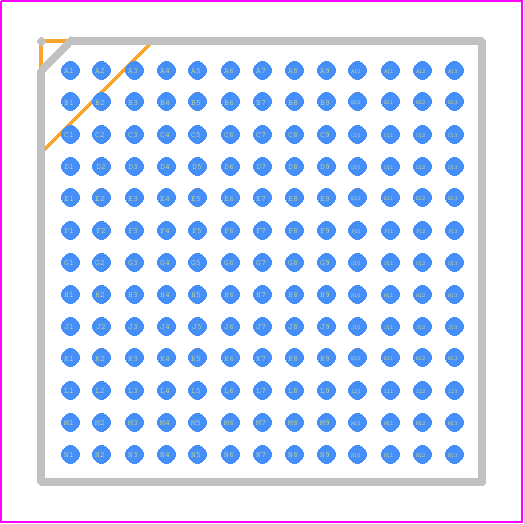

10M04SCU169I7G - Intel PCB footprint - BGA - BGA - 169-Pin Ultra FineLine Ball-Grid Array (UBGA)
click to zoom
3D Models
10M04SCU169I7G - Intel  - 3D model - BGA - 169-Pin Ultra FineLine Ball-Grid Array (UBGA)
click to zoom

10M04SCU169I7G Details

  • Manufacturer Part Number:

    10M04SCU169I7G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    7

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PBGA-B169

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    250

  • Number of Inputs:

    246

  • Number of Logic Cells:

    4000

  • Number of Outputs:

    246

  • Number of Terminals:

    169

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    250 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA169,13X13,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max:

    3.15 V

  • Supply Voltage-Min:

    2.85 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    55 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11 mm

10M04SCU169I7G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 10M04SCU169I7G is -40°C to 100°C.
  • To implement a CDC in the 10M04SCU169I7G, use a synchronizer circuit or a FIFO-based CDC, and ensure that the clock domains are properly isolated and synchronized.
  • The maximum frequency achievable with the 10M04SCU169I7G depends on the specific design and implementation, but Intel's Quartus II software can help estimate the maximum frequency based on the design's timing requirements.
  • To optimize power consumption in the 10M04SCU169I7G, use power-aware design techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling, and leverage Intel's PowerPlay power management technology.
  • The 10M04SCU169I7G can be configured using JTAG, AS, or PS mode, and can also be configured using external memory devices such as flash or SRAM.
