Intel provides a PCB design guide for the 10M04SCU324I7G, which recommends a 4-6 layer stackup with a minimum of 2 mil trace width and 2 mil spacing. Additionally, Intel suggests using a solid ground plane and following good signal integrity practices such as minimizing vias, using differential pairs, and adding decoupling capacitors.
To optimize power consumption, Intel recommends using the PowerPlay Early Power Estimator (EPE) tool to estimate power consumption during the design phase. Additionally, engineers can use the Intel Quartus Prime software to optimize power consumption by reducing clock frequencies, using low-power modes, and implementing power-gating techniques.
The 10M04SCU324I7G has a maximum junction temperature of 100°C. Intel recommends using a heat sink with a thermal interface material (TIM) and ensuring good airflow around the device. Engineers should also consider thermal simulation and analysis during the design phase to ensure adequate thermal management.
To ensure reliable configuration and boot-up, Intel recommends using a robust configuration scheme such as the Quad SPI Flash interface or the JTAG interface. Engineers should also follow Intel's guidelines for configuration file generation and ensure that the configuration clock frequency is within the recommended range.
The 10M04SCU324I7G is designed to meet the requirements of various radiation and EMC standards, including IEC 62396-1 and MIL-STD-883. Engineers should consult Intel's radiation and EMC guidelines and ensure that their design meets the relevant standards and regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
10M04SCU324I7G Overview

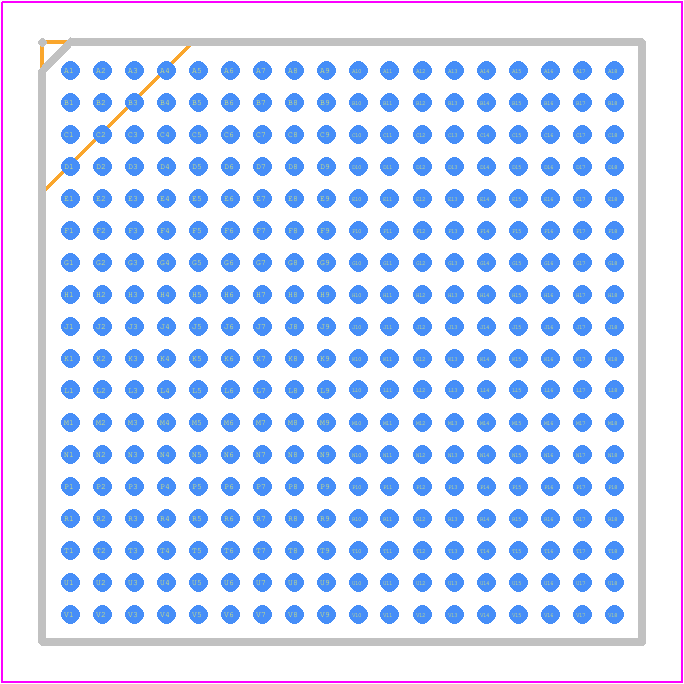

Use the download button to access the 10M04SCU324I7G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10M04,
or try a keyword search, such as Field Programmable Gate Arrays
