10M08SAE144I7P - Intel

Description: FPGA - Field Programmable Gate Array

Download 10M08SAE144I7P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

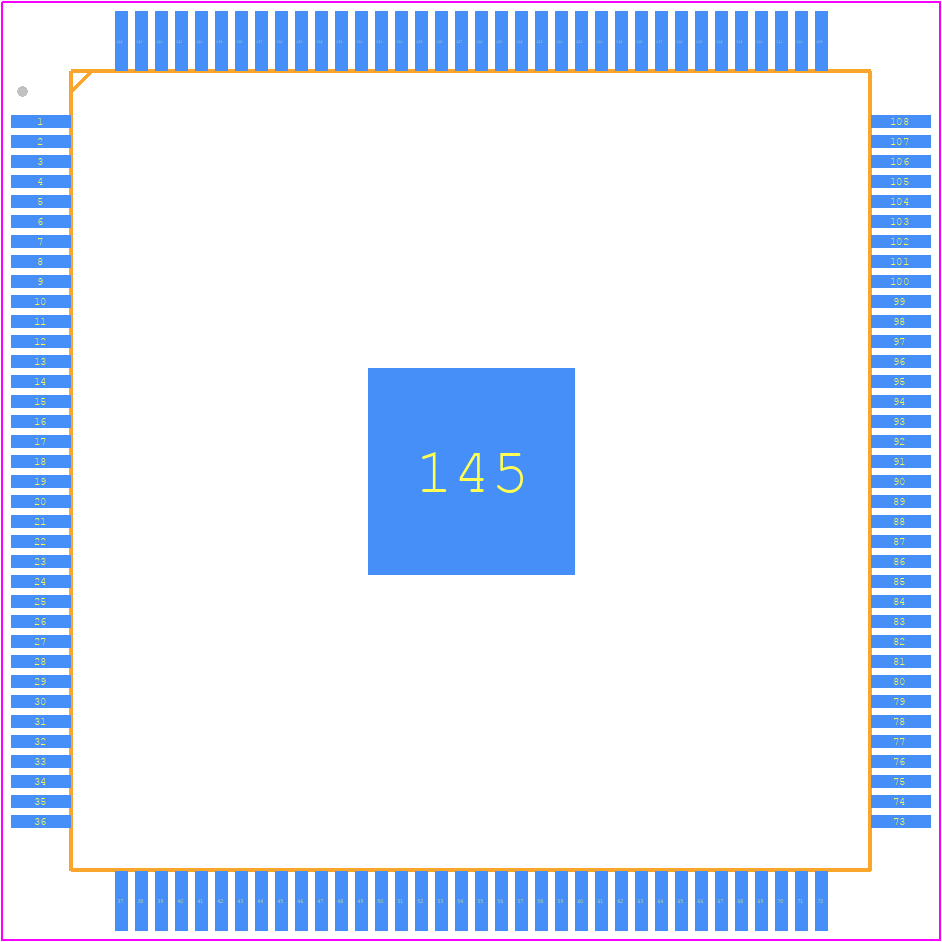

10M08SAE144I7P - Intel PCB footprint - Quad Flat Packages - Quad Flat Packages - 144-Pin  (EQFP)
click to zoom
3D Models
10M08SAE144I7P - Intel  - 3D model - Quad Flat Packages - 144-Pin  (EQFP)
click to zoom

10M08SAE144I7P Details

  • Manufacturer Part Number:

    10M08SAE144I7P

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFP-144

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PQFP-G144

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    500

  • Number of Inputs:

    250

  • Number of Logic Cells:

    8000

  • Number of Outputs:

    250

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    500 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    HQFP144,.87SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    220

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1.65 mm

  • Supply Voltage-Max:

    3.15 V

  • Supply Voltage-Min:

    2.85 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    55 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    20 mm

10M08SAE144I7P Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 10M08SAE144I7P is -40°C to 100°C.
  • To implement a CDC in the 10M08SAE144I7P, use a synchronizer circuit or a FIFO-based CDC, and ensure that the clock domains are properly isolated.
  • The maximum frequency achievable with the 10M08SAE144I7P depends on the specific design and implementation, but it can reach up to 500 MHz.
  • To optimize power consumption, use power-aware design techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS).
  • Yes, the 10M08SAE144I7P is suitable for high-reliability applications, such as aerospace, defense, and industrial control systems, due to its robust design and manufacturing process.
