10M25SCE144C8G - Intel

Description: FPGA MAX 10 Family 25000 Cells 55nm Technology 1.2V 144-Pin EQFP EP

Download 10M25SCE144C8G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

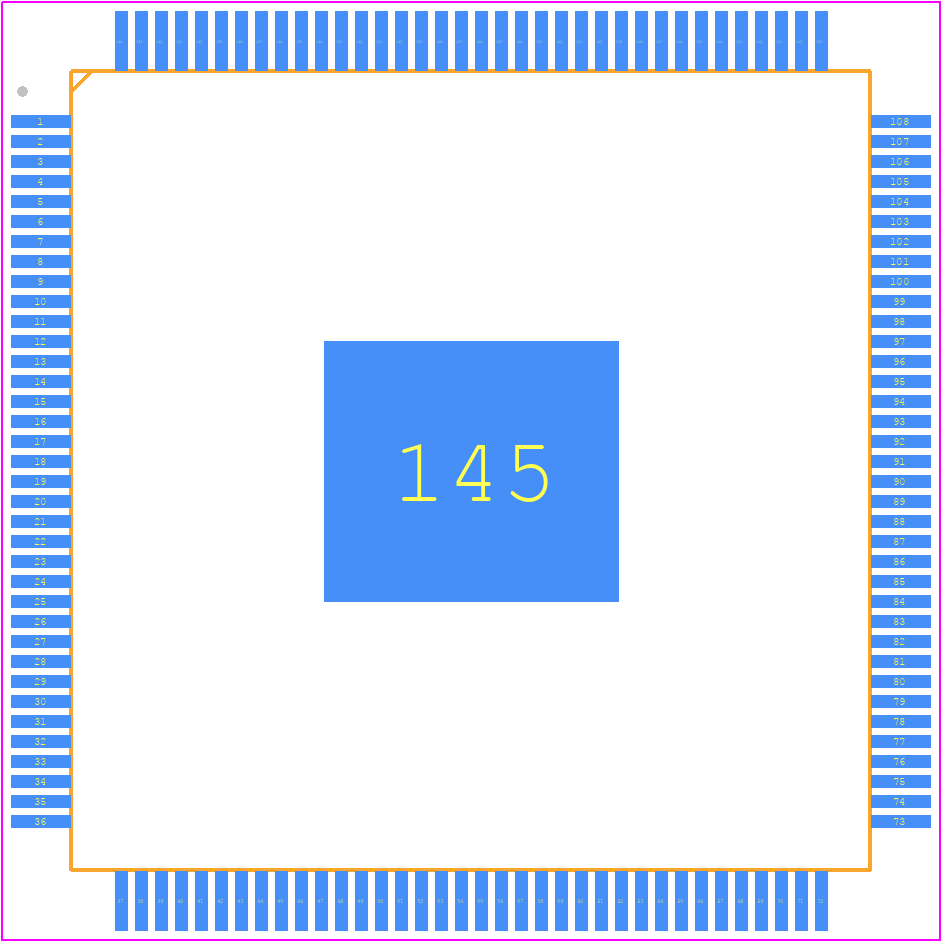

10M25SCE144C8G - Intel PCB footprint - Quad Flat Packages - Quad Flat Packages - 144-Pin Plastic Enhanced Quad Flat Pack (EQFP)*
click to zoom
3D Models
10M25SCE144C8G - Intel  - 3D model - Quad Flat Packages - 144-Pin Plastic Enhanced Quad Flat Pack (EQFP)*
click to zoom

10M25SCE144C8G Details

  • Manufacturer Part Number:

    10M25SCE144C8G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PQFP-G144

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    1563

  • Number of Inputs:

    360

  • Number of Logic Cells:

    25000

  • Number of Outputs:

    360

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    85 °C

  • Organization:

    1563 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    HQFP144,.87SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.65 mm

  • Supply Voltage-Max:

    3.15 V

  • Supply Voltage-Min:

    2.85 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    55 nm

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    20 mm

10M25SCE144C8G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 10M25SCE144C8G is -40°C to 100°C.
  • To implement a CDC in the 10M25SCE144C8G, use a synchronizer circuit or a FIFO-based CDC, and ensure that the clock domains are properly isolated.
  • The maximum frequency achievable with the 10M25SCE144C8G depends on the specific design and implementation, but Intel's Quartus II software can help estimate the maximum frequency.
  • To optimize power consumption, use Intel's PowerPlay power analysis tool, reduce clock frequencies, and implement power-gating and dynamic voltage and frequency scaling (DVFS) techniques.
  • The 10M25SCE144C8G can be configured using JTAG, AS, or PS mode, and can also be configured using external flash memory or a configuration device.
