10M25SCE144I7G - Intel

Description: 10M25SCE144I7G

Download 10M25SCE144I7G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

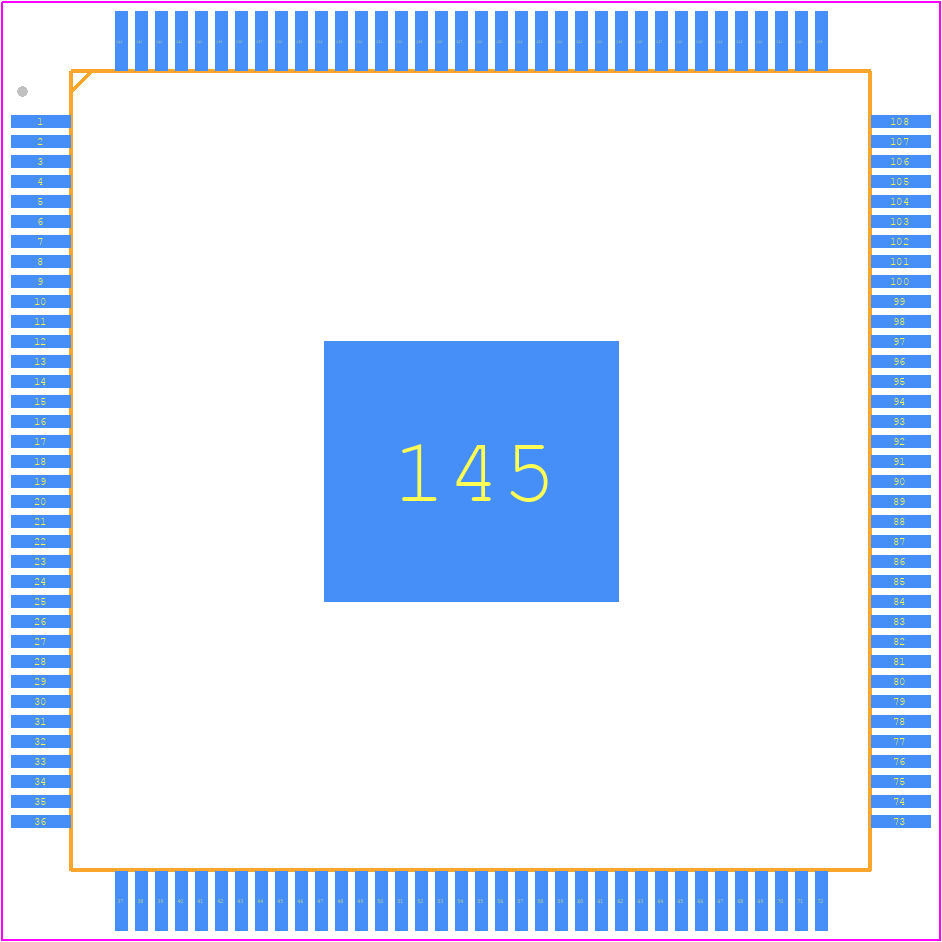

10M25SCE144I7G - Intel PCB footprint - Quad Flat Packages - Quad Flat Packages - 144 eqfp
click to zoom
3D Models
10M25SCE144I7G - Intel  - 3D model - Quad Flat Packages - 144 eqfp
click to zoom

10M25SCE144I7G Details

  • Manufacturer Part Number:

    10M25SCE144I7G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PQFP-G144

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    1563

  • Number of Inputs:

    360

  • Number of Logic Cells:

    25000

  • Number of Outputs:

    360

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1563 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    HQFP144,.87SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.65 mm

  • Supply Voltage-Max:

    3.15 V

  • Supply Voltage-Min:

    2.85 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    55 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    20 mm

10M25SCE144I7G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 10M25SCE144I7G is -40°C to 100°C.
  • To implement a CDC in the 10M25SCE144I7G, use a synchronizer circuit or a FIFO-based CDC, and ensure that the clock domains are properly isolated.
  • The maximum frequency achievable with the 10M25SCE144I7G depends on the specific design and implementation, but Intel's Quartus II software can help estimate the maximum frequency.
  • To optimize power consumption, use Intel's PowerPlay power analysis tool, reduce clock frequencies, and use low-power modes when possible.
  • Yes, the 10M25SCE144I7G is suitable for high-reliability applications, such as aerospace and defense, due to its robust design and manufacturing process.
