The maximum junction temperature for the 10M40SAE144C8G is 100°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
To implement a clock domain crossing in the 10M40SAE144C8G, you can use Intel's recommended CDC techniques, such as using synchronizers, FIFOs, or asynchronous FIFOs. You can also use Intel's IP cores, such as the CDC IP, to simplify the implementation.
The power consumption of the 10M40SAE144C8G depends on the specific use case and design implementation. However, according to the datasheet, the typical static power consumption is around 1.2W, and the dynamic power consumption can range from 1.5W to 3.5W, depending on the clock frequency and activity factor.
Yes, the 10M40SAE144C8G is suitable for high-reliability applications, such as aerospace, defense, and industrial control systems. It has been designed and tested to meet the requirements of these applications, including radiation tolerance and fault tolerance.
To configure the 10M40SAE144C8G for a specific application, you can use Intel's Quartus Prime software, which provides a comprehensive development environment for designing, implementing, and testing FPGA-based systems. You can also use Intel's IP cores and reference designs to accelerate your development process.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
10M40SAE144C8G Overview

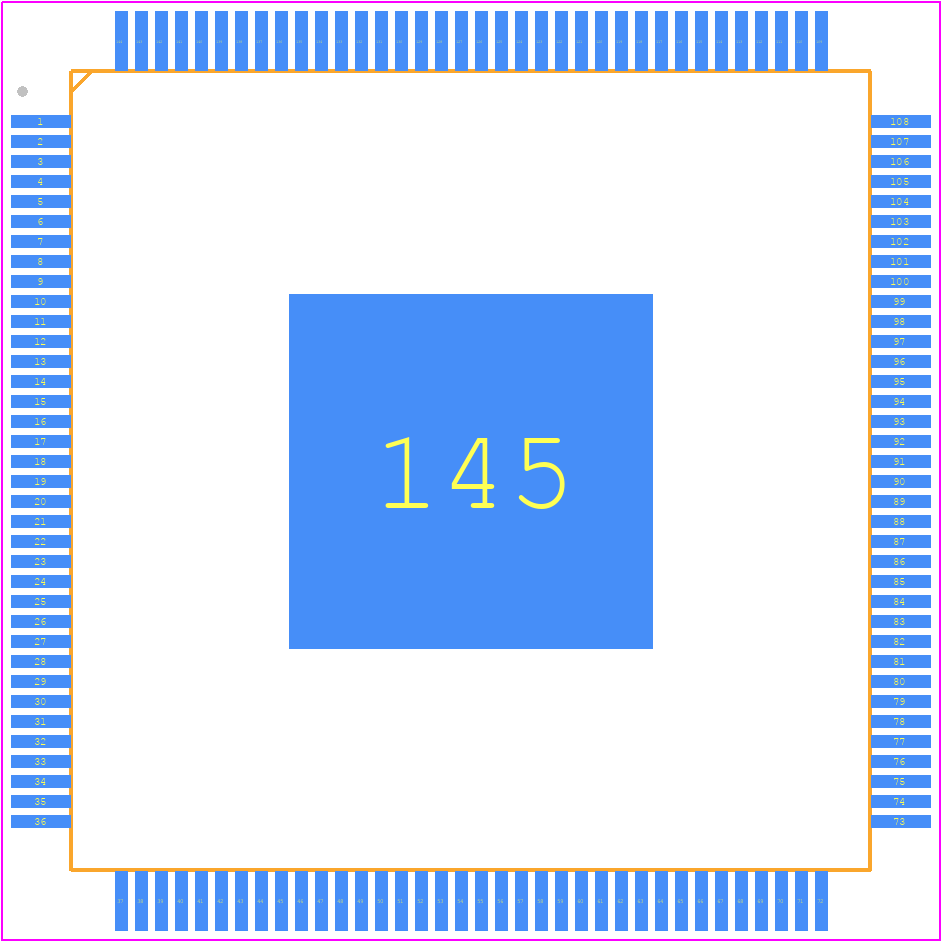

Use the download button to access the 10M40SAE144C8G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10M40,
or try a keyword search, such as Field Programmable Gate Arrays
