10M50DCF672C8G - Intel

Description: MAX 10 FPGA, BGA-672

Download 10M50DCF672C8G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
10M50DCF672C8G - Intel - PCB symbol
click to zoom
PCB Footprints

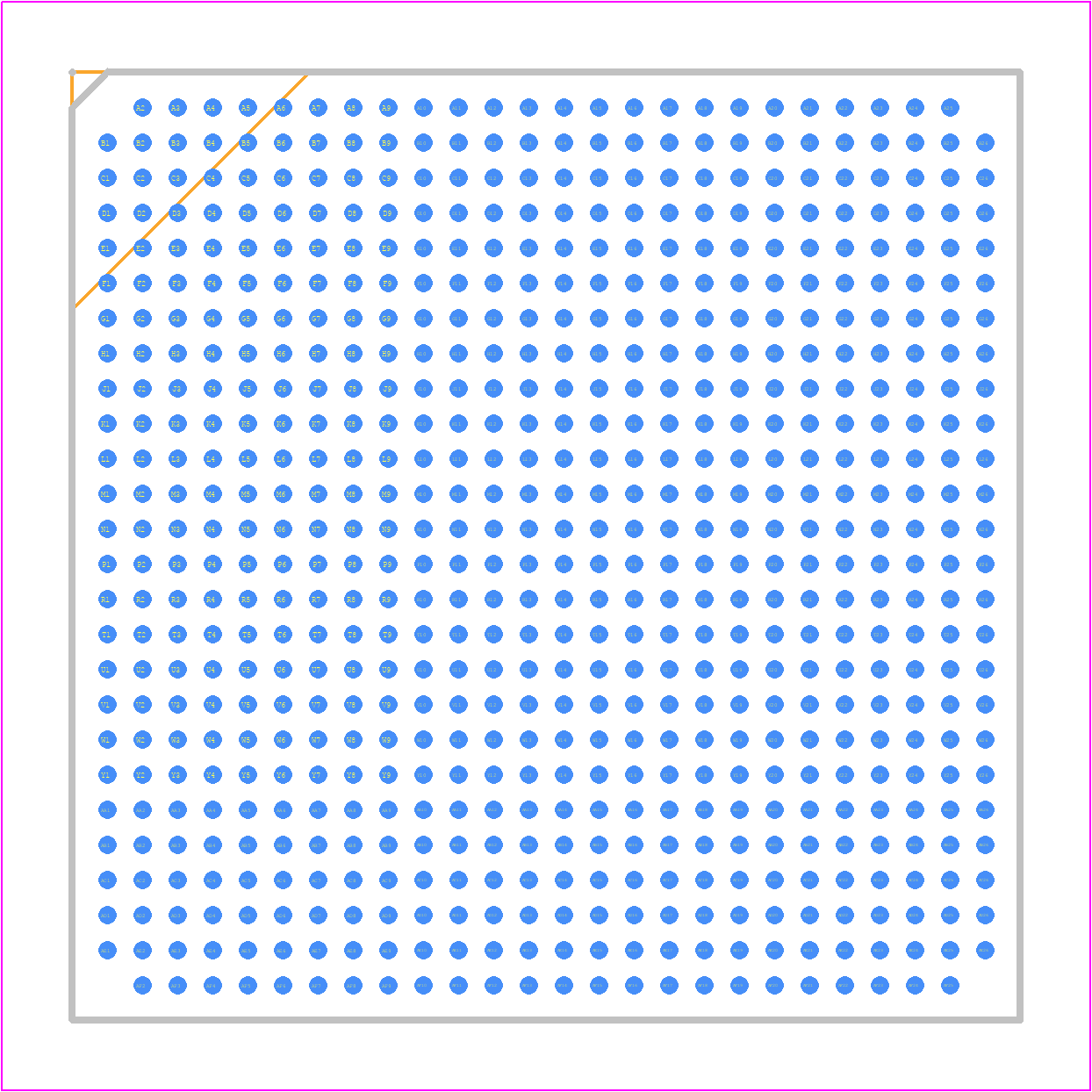

10M50DCF672C8G - Intel PCB footprint - BGA - BGA - 672-Pin FineLine Ball-Grid Array (FBGA)
click to zoom
3D Models
10M50DCF672C8G - Intel - 3D model - BGA - 672-Pin FineLine Ball-Grid Array (FBGA)
click to zoom

10M50DCF672C8G Details

  • Manufacturer Part Number:

    10M50DCF672C8G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    7

  • JESD-30 Code:

    S-PBGA-B672

  • JESD-609 Code:

    e1

  • Length:

    27 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    3125

  • Number of Inputs:

    500

  • Number of Logic Cells:

    50000

  • Number of Outputs:

    500

  • Number of Terminals:

    672

  • Operating Temperature-Max:

    85 °C

  • Organization:

    3125 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA672,26X26,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    55 nm

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    27 mm
