The maximum junction temperature for the 10M50SCE144A7G is 100°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
To implement a clock domain crossing in the 10M50SCE144A7G, you can use Intel's recommended CDC techniques, such as using asynchronous FIFOs, gray code counters, or synchronizer circuits. You can also use Intel's IP cores, such as the CDC IP, to simplify the design process.
The power consumption of the 10M50SCE144A7G depends on the specific design and operating conditions. However, according to the datasheet, the typical static power consumption is around 1.2W, and the dynamic power consumption can range from 1.5W to 3.5W, depending on the clock frequency and toggle rate.
Yes, the 10M50SCE144A7G is suitable for high-reliability applications. Intel offers a range of FPGA devices that meet the requirements of the aerospace and defense industries, including the 10M50SCE144A7G. However, you should consult with Intel's sales team and review the device's reliability and quality data to ensure it meets your specific requirements.
To secure your design on the 10M50SCE144A7G, you can use Intel's security features, such as the Secure Boot mechanism, which ensures that only authorized firmware can be loaded onto the device. You can also use encryption and secure key storage to protect your design. Additionally, you can implement your own security measures, such as secure communication protocols and access controls.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
10M50SCE144A7G Overview

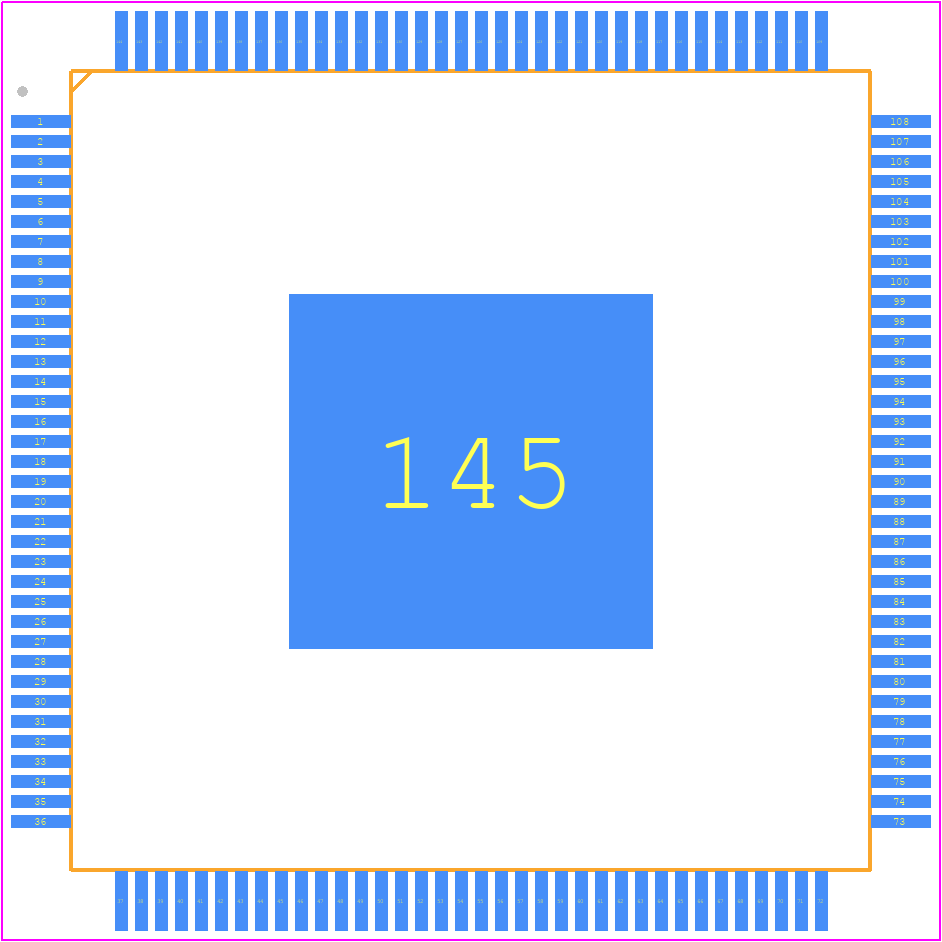

Use the download button to access the 10M50SCE144A7G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10M50,
or try a keyword search, such as Field Programmable Gate Arrays
