10SEP560M+T - Panasonic

Description: Panasonic 560µF 10V dc Aluminium Electrolytic Capacitor, Through Hole 10 x 13mm +105°C 10mm 5mm 13mm

Download 10SEP560M+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
10SEP560M+T - Panasonic - PCB symbol
click to zoom

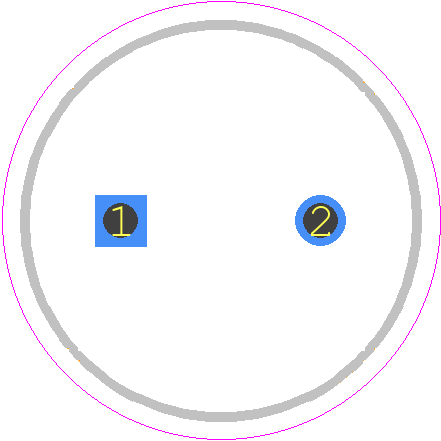

PCB Footprints
10SEP560M+T - Panasonic PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - F13_2021
click to zoom
3D Models
10SEP560M+T - Panasonic - 3D model - Capacitor, Polarized Radial Diameter - F13_2021
click to zoom

10SEP560M+T Details

  • Manufacturer Part Number:

    10SEP560M+T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    3

  • Additional Feature:

    ESR IS MEASURED AT 100KHZ-300KHZ

  • Capacitance:

    560 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    ALUMINUM (SOLID POLYMER)

  • ESR:

    13 mΩ

  • Leakage Current:

    0.84 mA

  • Length:

    13 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    AMMO PACK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    10 V

  • Ripple Current:

    261.5 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE
