Part Image

10SVPE220M - Panasonic

Description: Panasonic 220μF 10 V dc Polymer Aluminium Electrolytic Capacitor C6, OS-CON Series 2000h 6.3 x 5.9mm

Download 10SVPE220M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
10SVPE220M - Panasonic - PCB symbol
click to zoom

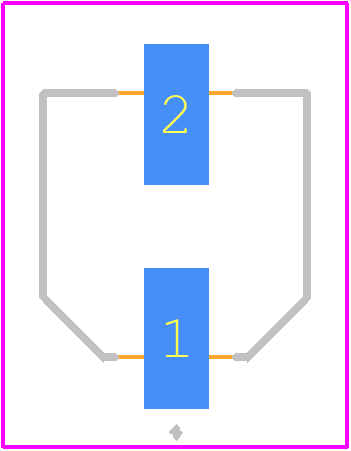

PCB Footprints
10SVPE220M - Panasonic PCB footprint - Other - Other - C6
click to zoom
3D Models
10SVPE220M - Panasonic - 3D model - Other - C6
click to zoom

10SVPE220M Details

  • Manufacturer Part Number:

    10SVPE220M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7.45

  • Additional Feature:

    ESR IS MEASURED AT 100KHZ

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    6.3 mm

  • Dielectric Material:

    ALUMINUM (SOLID POLYMER)

  • ESR:

    18 mΩ

  • Height:

    5.9 mm

  • Leakage Current:

    0.5 mA

  • Length:

    6.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    10 V

  • Ripple Current:

    135 mA

  • Size Code:

    2626

  • Surface Mount:

    YES

  • Tan Delta:

    0.12

  • Terminal Shape:

    FLAT

  • Width:

    6.6 mm

10SVPE220M Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 10SVPE220M can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website or through their customer support.
  • The 10SVPE220M is a moisture-sensitive device, and it should be handled according to the JEDEC J-STD-033 standard. This includes baking the devices before reflow soldering and using a nitrogen-filled packaging to prevent moisture absorption.
  • The maximum reflow temperature for the 10SVPE220M is 260°C, and it should be reflowed according to the recommended reflow profile provided in the datasheet.
  • The 10SVPE220M is designed to withstand moderate vibration, but it's recommended to consult with Panasonic Electronic Components' application engineers to determine the suitability of the device for a specific high-vibration application.
  • The ESR of the 10SVPE220M can be determined by measuring the impedance of the device at high frequency (e.g., 100 kHz) using an impedance analyzer or a network analyzer.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

10SVPE220M Overview

Use the download button to access the 10SVPE220M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10SVP, or try a keyword search, such as Ceramic Capacitors
