112538 - Amphenol

Description: RF Connectors / Coaxial Connectors BNC ST PCB JACK 50 OHM TF-4 POST

Download 112538 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
112538 - Amphenol - PCB symbol
click to zoom
PCB Footprints

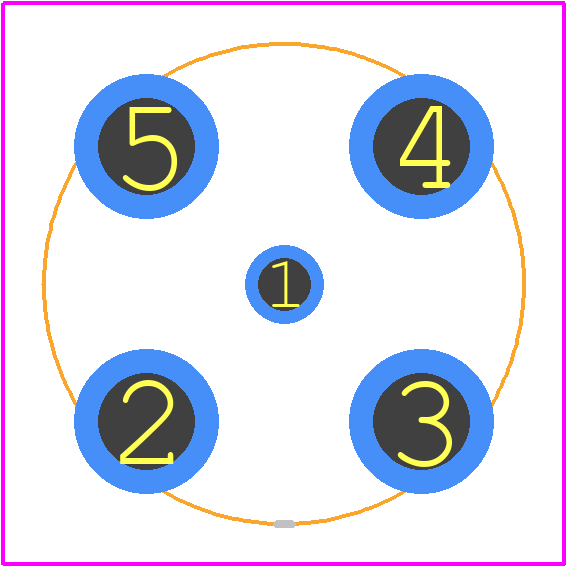

112538 - Amphenol PCB footprint - Other - Other - 112538-2
click to zoom
3D Models
112538 - Amphenol - 3D model - Other - 112538-2
click to zoom

112538 Details

  • Manufacturer Part Number:

    112538

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Amphenol Corporation

  • Body/Shell Style:

    JACK

  • Connector Type:

    RF BNC CONNECTOR

  • Contact Gender:

    FEMALE

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Termination Type:

    SOLDER

112538 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 112538 connector is 10-12 in-lbs (1.1-1.4 Nm) for the screw locks, and 5-7 in-lbs (0.6-0.8 Nm) for the jack screws.
  • Yes, the 112538 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the 112538 connector is designed to operate in harsh environments, with an operating temperature range of -55°C to 125°C and a humidity rating of 95% RH at 40°C.
  • The 112538 connector has a mating cycle life of 500 cycles minimum, with a maximum of 1000 cycles.
  • Yes, the 112538 connector is compatible with other Amphenol connectors, including the 112537 and 112539 connectors, which share the same interface and mating characteristics.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

112538 Overview

Use the download button to access the 112538 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 11253, or try a keyword search, such as Terminals and Terminal Blocks

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
