112659-75-13 footprint, schematic symbol and 3D model by Amphenol

Symbol

click to zoom

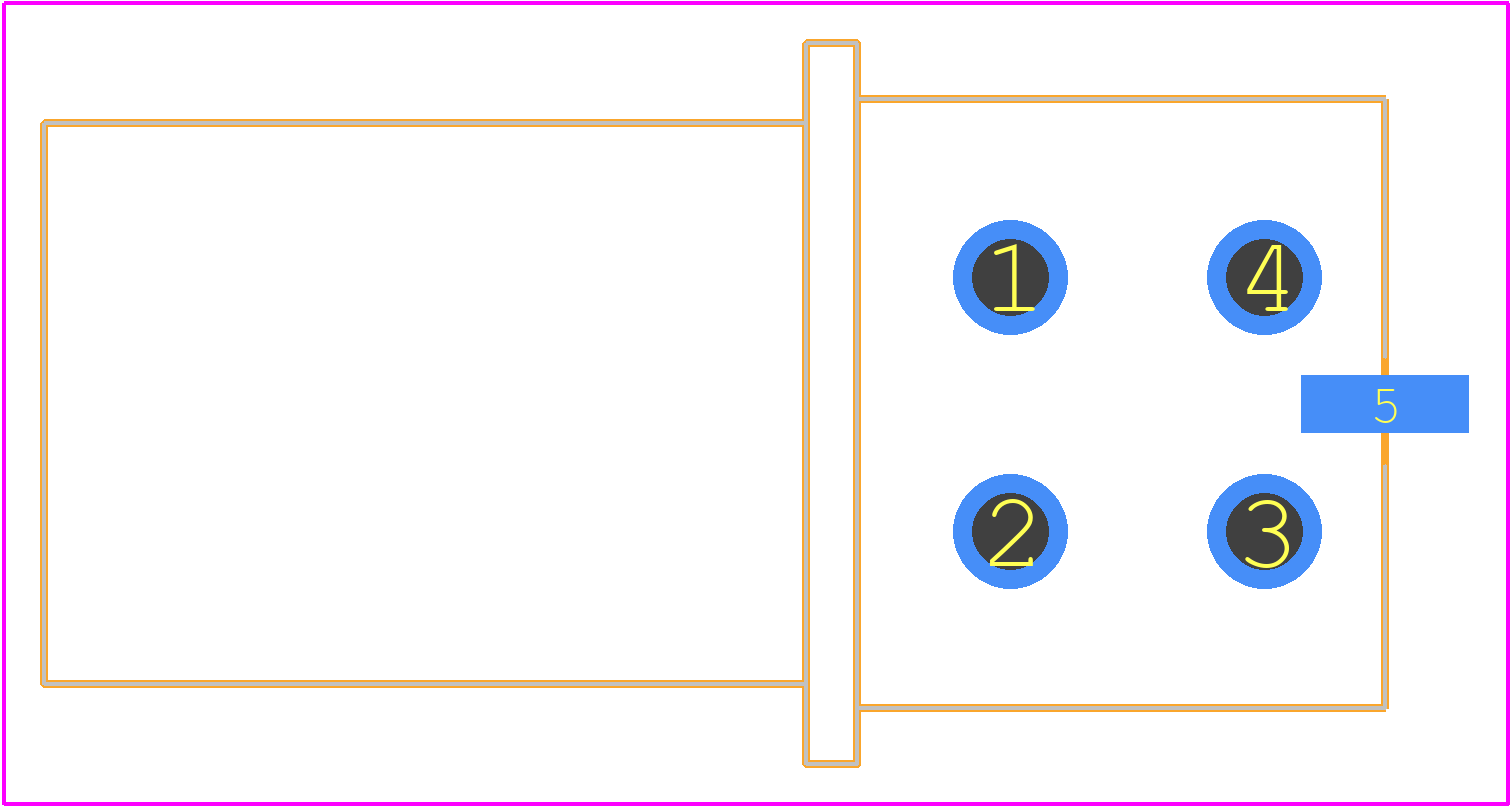

PCB Footprints

112659-75-13 - Amphenol PCB footprint - Other - Other - 112659-75-13-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 112659-75-13
Part Number 112659-75-13
Manufacturer Amphenol
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - 112659-75-13-2
Released Date Aug 29, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

112659-75-13 Details

Manufacturer Part Number:
112659-75-13
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Amphenol Corporation
Body Depth:
1.321 inch
Body/Shell Style:
JACK
Connector Type:
RF BNC CONNECTOR
Contact Style:
COAX
Coupling Type:
BAYONET
Insulator Color:
NATURAL
Insulator Material:
POLYTETRAFLUOROETHYLENE
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Number of Ports:
1
Shell Finish:
NICKEL
Shell Material:
BRASS
Total Number of Contacts:
1

112659-75-13 Frequently Asked Questions (FAQs)

The recommended torque value is typically specified in the Amphenol Corporation's application notes or installation instructions, but a general guideline is to apply 10-15 in-lbs (1.1-1.7 Nm) of torque for mating and unmating the connector.
Yes, the 112659-75-13 connector is designed to meet the requirements of MIL-DTL-38999, which includes testing for vibration, shock, and other environmental factors. However, it's essential to consult with Amphenol Corporation or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
The 112659-75-13 connector is rated for operation in temperatures ranging from -65°C to 200°C. However, it's crucial to consider the specific temperature requirements of your application and consult with Amphenol Corporation or a qualified engineer to ensure the connector meets those requirements.
The recommended cable type and size will depend on the specific application and requirements. Amphenol Corporation provides guidelines for cable selection in their application notes or installation instructions. Typically, a cable with a diameter of 0.125-0.250 inches (3.2-6.4 mm) is suitable for use with this connector.
The 112659-75-13 connector is designed to meet the MIL-DTL-38999 standard, which ensures compatibility with other manufacturers' mating connectors that also meet this standard. However, it's essential to verify compatibility with the specific mating connector you plan to use.
