- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 112C-TBAR-R02
- Part Number 112C-TBAR-R02
- Manufacturer ATTEND
- Pin Count 12
- Part Category Connector
- Package Category Other
- Footprint Name Other - 112C-TBAR-R02-2
- Released Date Oct 25, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
112C-TBAR-R02 Details
-
Manufacturer Part Number:
112C-TBAR-R02
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Attend Technology Inc
-
Body/Shell Style:
SOCKET
-
Connector Type:
PCB CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Material:
NOT SPECIFIED
112C-TBAR-R02 Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the 112C-TBAR-R02 is 0°C to 70°C (32°F to 158°F).
-
Handle the 112C-TBAR-R02 by the edges, avoid touching the pins, and store it in an anti-static bag or wrap it in anti-static material to prevent electrostatic discharge damage.
-
The maximum current rating for the 112C-TBAR-R02 is 1A per pin, but it's recommended to derate the current based on the ambient temperature and other environmental factors.
-
Yes, the 112C-TBAR-R02 is designed to withstand moderate vibration, but it's recommended to secure the device properly and ensure the PCB is properly mounted to prevent damage.
-
To troubleshoot issues with the 112C-TBAR-R02, check the power supply, signal integrity, and PCB layout. Use an oscilloscope to verify signal quality and check for any signs of physical damage or overheating.
Trust Checks
Expert Contribution
System Verified
Community Approved
112C-TBAR-R02 Overview

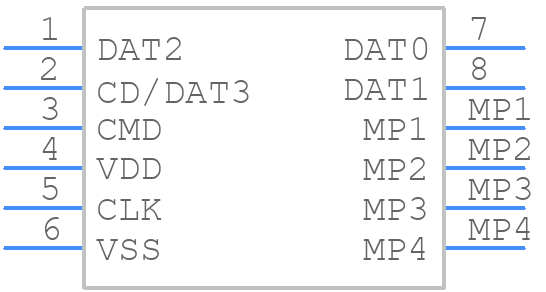

Use the download button to access the 112C-TBAR-R02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 112C-,
or try a keyword search, such as Headers and Edge Type Connectors
