Part Image

112J-TDAR-R01 - ATTEND

Description: Connector: for cards; SD Micro; push-push; SMT; gold-plated

Download 112J-TDAR-R01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

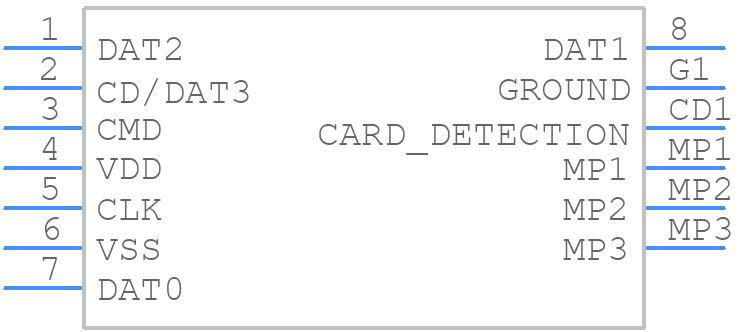

Symbol
112J-TDAR-R01 - ATTEND - PCB symbol
click to zoom
PCB Footprints
112J-TDAR-R01 - ATTEND PCB footprint - Other - Other - 112J-TDAR-R01-2
click to zoom
3D Models
112J-TDAR-R01 - ATTEND - 3D model - Other - 112J-TDAR-R01-2
click to zoom

112J-TDAR-R01 Details

  • Manufacturer Part Number:

    112J-TDAR-R01

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Attend Technology Inc

  • Board Mounting Option:

    COMPLIANT BOARDLOCK

  • Body Breadth:

    0.096 inch

  • Body Depth:

    0.57 inch

  • Body Length:

    0.579 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.037 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    10u inch

  • Terminal Pitch:

    1.1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    8

112J-TDAR-R01 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 112J-TDAR-R01 is -40°C to 85°C.
  • The 112J-TDAR-R01 module can be configured for different frequency bands using the AT commands provided in the module's documentation. The specific commands and settings will depend on the desired frequency band and application.
  • The maximum transmit power of the 112J-TDAR-R01 is +20 dBm.
  • Yes, the 112J-TDAR-R01 supports sleep mode and low-power modes to reduce power consumption when not in use. The module can be configured to enter sleep mode using AT commands.
  • Yes, the 112J-TDAR-R01 can be used in a multi-module configuration, but it requires careful planning and design to ensure proper synchronization and communication between modules.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

112J-TDAR-R01 Overview

Use the download button to access the 112J-TDAR-R01 schematic symbol, PCB footprint, and 3D model.
