1140-103K-RC - Bourns

Description: Fixed Inductors 10mH 10%

Download 1140-103K-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1140-103K-RC - Bourns - PCB symbol
click to zoom
PCB Footprints

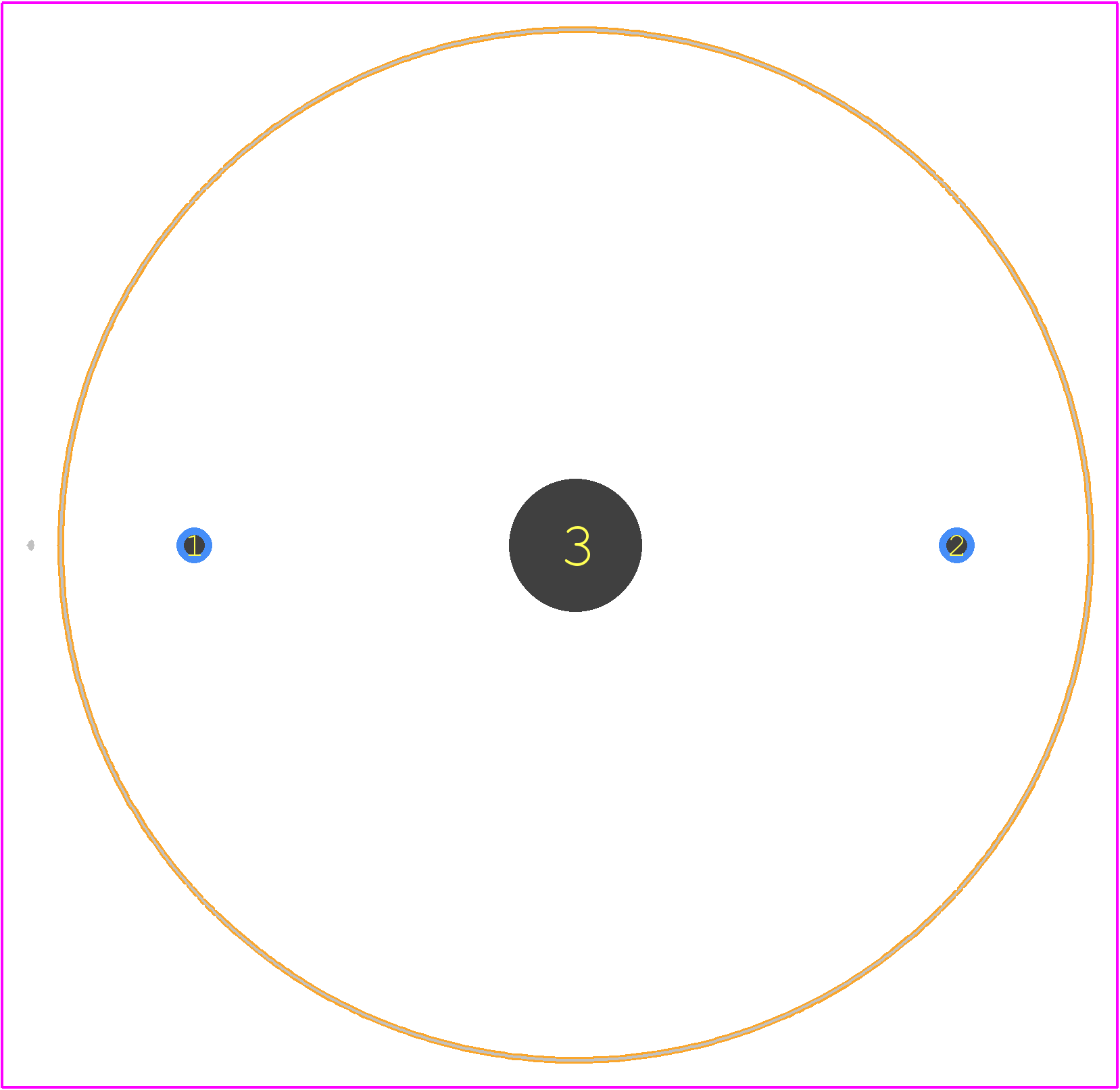

1140-103K-RC - Bourns PCB footprint - Other - Other - 1140-103K-RC-2
click to zoom
3D Models
1140-103K-RC - Bourns - 3D model - Other - 1140-103K-RC-2
click to zoom

1140-103K-RC Details

  • Manufacturer Part Number:

    1140-103K-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6

  • Construction:

    Bobbin Core

  • Core Material:

    FERRITE

  • DC Resistance:

    2.76 Ω

  • Inductance-Nom (L):

    10000 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Lead Diameter:

    0.5842 mm

  • Lead Length:

    12.7 mm

  • Lead Spacing:

    28.194 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    38.1 mm

  • Package Length:

    26.162 mm

  • Package Style:

    Radial

  • Rated Current-Max:

    1 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

1140-103K-RC Frequently Asked Questions (FAQs)

  • Bourns provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper thermal management, minimize parasitic inductance, and optimize performance.
  • The 1140-103K-RC is designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). It features a shielded construction and is designed to meet CISPR 25 and FCC Part 15 Class B emissions standards.
  • The 1140-103K-RC is rated for operation from -40°C to +150°C, making it suitable for a wide range of industrial and automotive applications.
  • Yes, the 1140-103K-RC is designed to withstand high-vibration environments. It meets the vibration testing requirements of IEC 60068-2-6 and is suitable for use in automotive, industrial, and other applications where vibration is a concern.
  • Bourns recommends storing the 1140-103K-RC in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handling should be done with electrostatic discharge (ESD) precautions to prevent damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1140-103K-RC Overview

Use the download button to access the 1140-103K-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1140-, or try a keyword search, such as Fixed Inductors
