1140-121K-RC - Bourns

Description: Fixed Inductors 120uH 10%

Download 1140-121K-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

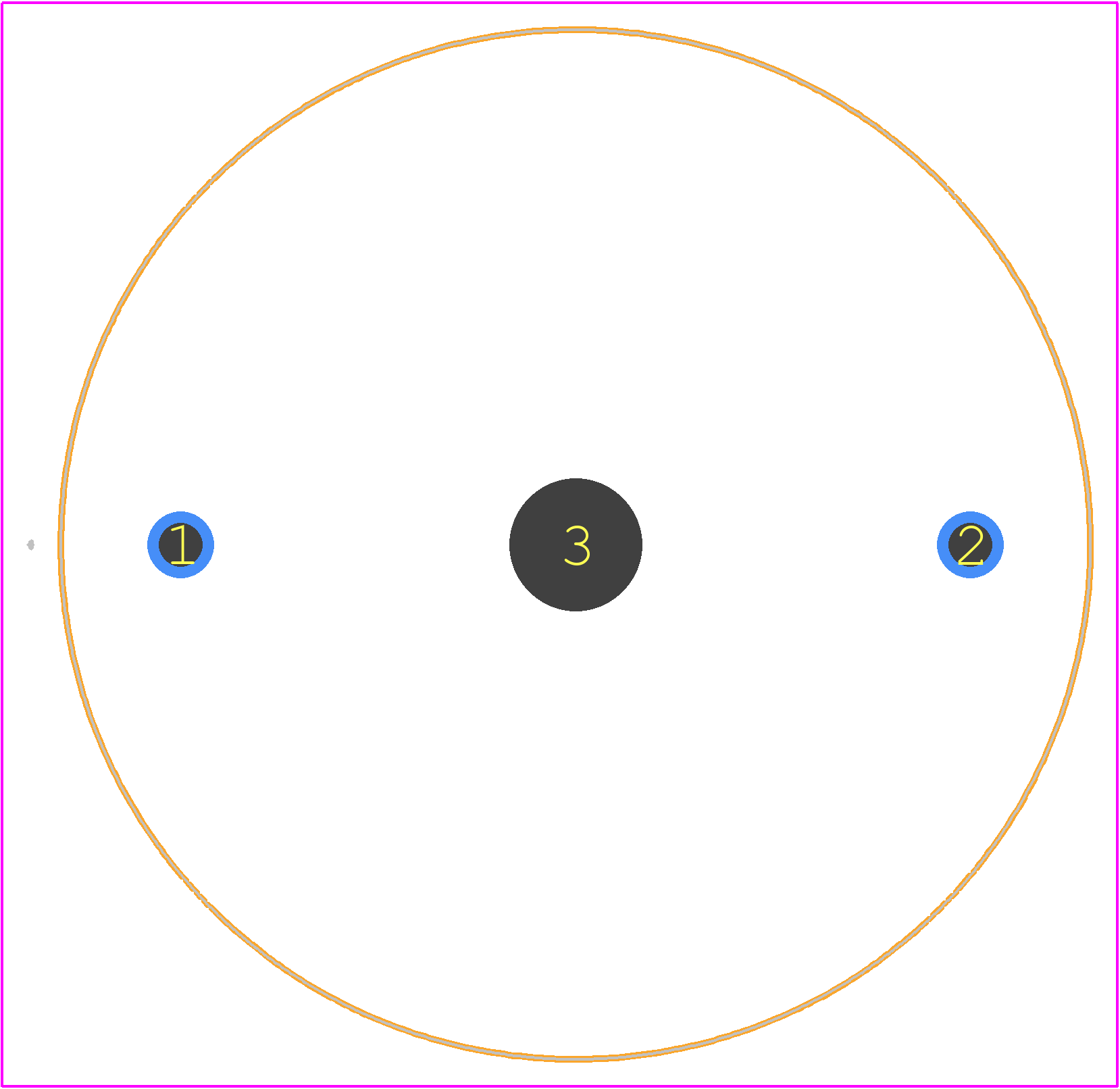

1140-121K-RC - Bourns PCB footprint - Other - Other - 1140-121K-RC-2
click to zoom
3D Models
1140-121K-RC - Bourns  - 3D model - Other - 1140-121K-RC-2
click to zoom

1140-121K-RC Details

  • Manufacturer Part Number:

    1140-121K-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • Construction:

    Bobbin Core

  • Core Material:

    FERRITE

  • DC Resistance:

    0.028 Ω

  • Inductance-Nom (L):

    120 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Lead Diameter:

    1.4478 mm

  • Lead Length:

    12.7 mm

  • Lead Spacing:

    29.21 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    38.1 mm

  • Package Length:

    26.162 mm

  • Package Style:

    Radial

  • Rated Current-Max:

    9.9 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

1140-121K-RC Frequently Asked Questions (FAQs)

  • Bourns provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper thermal management, minimize parasitic inductance, and optimize performance.
  • To minimize electromagnetic interference (EMI), keep the inductor at least 5 mm away from sensitive components. You can also use shielding techniques, such as copper tape or mu-metal shielding, to contain the magnetic field.
  • While the datasheet specifies a maximum current rating, it's essential to ensure the voltage across the inductor doesn't exceed the core material's saturation point. As a general rule, keep the voltage across the inductor below 1.5 times the maximum rated voltage.
  • To minimize saturation and core loss, ensure the inductor's operating frequency and current are within the specified ranges. You can also use simulation tools to model the inductor's behavior and optimize your design accordingly.
  • The self-resonant frequency is typically not specified in the datasheet. However, you can estimate it using the inductor's inductance and capacitance values. Be aware that operating near the self-resonant frequency can lead to reduced performance and potential oscillations.
