1140-331K-RC - Bourns

Description: Bourns 330 μH ±10% Ferrite Bobbin Core Power Inductor, 6.1A Idc, 74mΩ Rdc 1140

Download 1140-331K-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

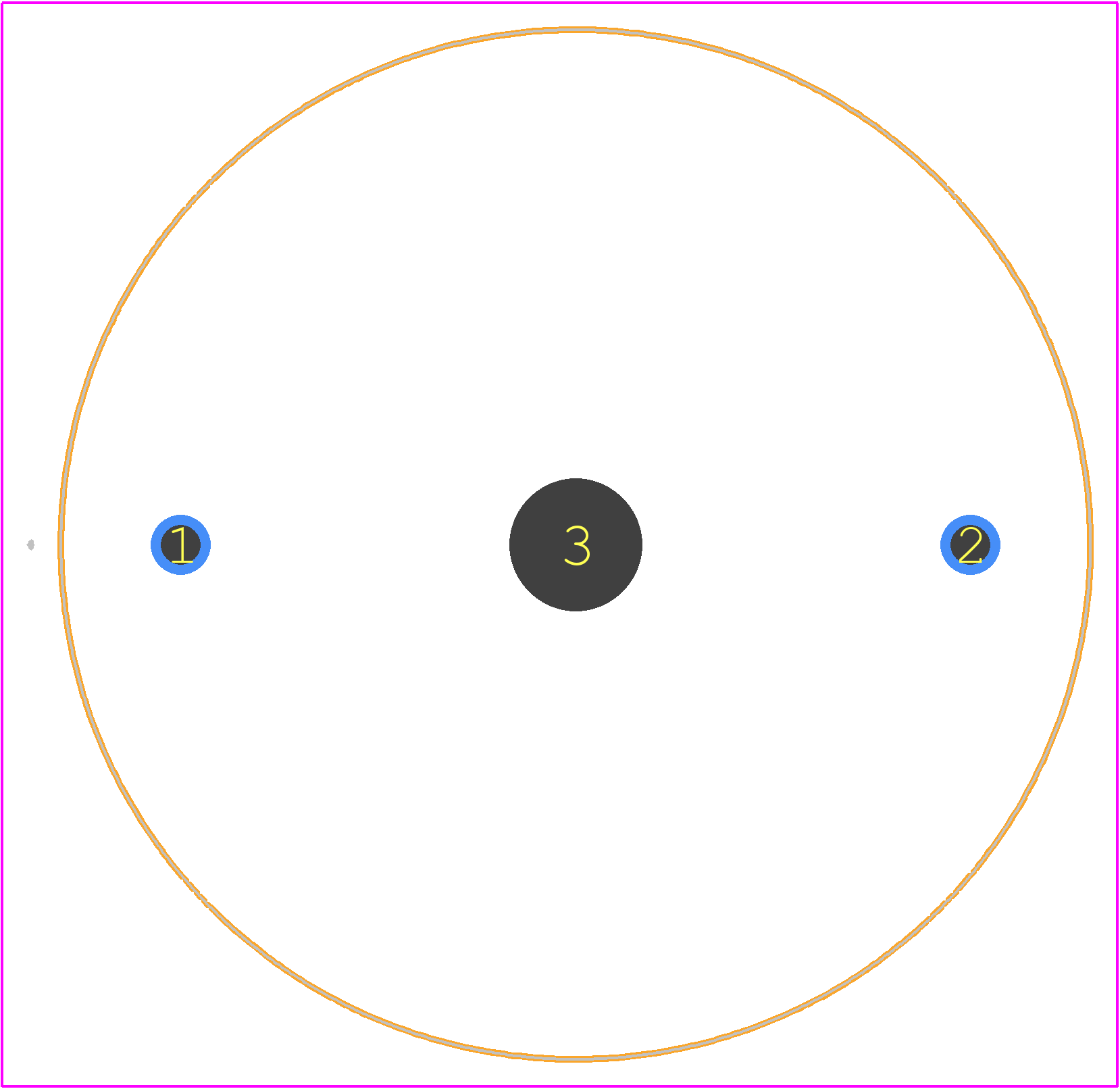

1140-331K-RC - Bourns PCB footprint - Other - Other - 1140-331K-RC-2
click to zoom
3D Models
1140-331K-RC - Bourns  - 3D model - Other - 1140-331K-RC-2
click to zoom

1140-331K-RC Details

  • Manufacturer Part Number:

    1140-331K-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.6

  • Construction:

    Bobbin Core

  • Core Material:

    FERRITE

  • DC Resistance:

    0.074 Ω

  • Inductance-Nom (L):

    330 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Lead Diameter:

    1.2954 mm

  • Lead Length:

    12.7 mm

  • Lead Spacing:

    29.21 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    38.1 mm

  • Package Length:

    26.162 mm

  • Package Style:

    Radial

  • Rated Current-Max:

    6.1 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

1140-331K-RC Frequently Asked Questions (FAQs)

  • Bourns provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper thermal management, minimize parasitic inductance, and optimize performance.
  • The 1140-331K-RC is designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). The shielded construction and magnetic shielding help reduce radiation and susceptibility to external noise.
  • While the datasheet specifies a maximum voltage rating, it's essential to derate the voltage based on the application's operating conditions. A general rule of thumb is to derate the voltage by 10-20% to ensure reliable operation.
  • The 1140-331K-RC is rated for operation up to 125°C. However, it's crucial to consider the temperature coefficient of inductance and the potential for thermal runaway in high-temperature applications.
  • The 1140-331K-RC is designed for high-frequency switching applications. However, it's essential to consider the inductor's core losses, skin effect, and proximity effect to ensure optimal performance and minimize energy losses.
