1146570000 - Weidmüller

Description: PCB connector (board connection), 320 V, 24 A, Pitch in mm: 5.08, Number of poles: 12, THT solder connection, Box

Download 1146570000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1146570000 - Weidmüller - PCB symbol
click to zoom

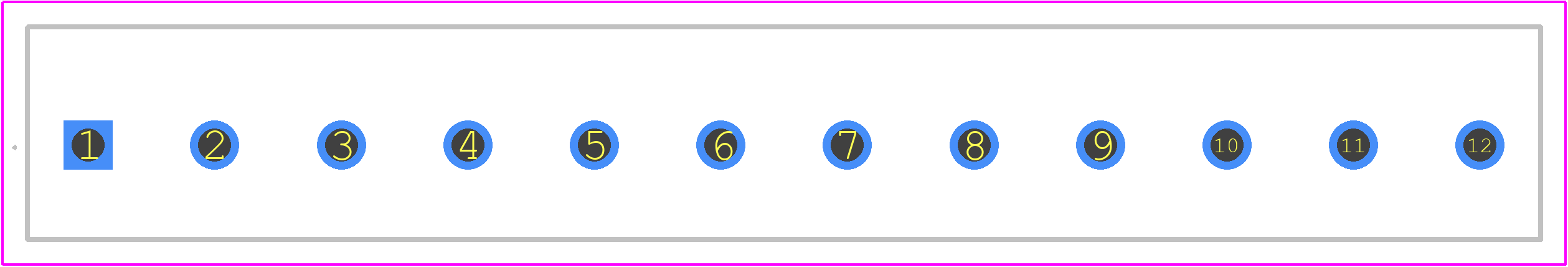

PCB Footprints
1146570000 - Weidmüller PCB footprint - Other - Other - 1146570000
click to zoom
3D Models
1146570000 - Weidmüller - 3D model - Other - 1146570000
click to zoom

1146570000 Details

  • Manufacturer Part Number:

    1146570000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, PA GF

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    18.5 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; CUL; EAC; IEC; KEMA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1146570000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1146570000 is -40°C to 85°C, according to Weidmüller's documentation.
  • Yes, the 1146570000 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The maximum current rating of the 1146570000 is 16 A, according to the datasheet and Weidmüller's specifications.
  • While the 1146570000 is designed for industrial use, it is not specifically rated for outdoor use. However, it can be used in outdoor applications if properly protected from environmental factors such as moisture, UV, and extreme temperatures.
  • Yes, the 1146570000 is designed to be compatible with other Weidmüller products, including their range of connectors, terminals, and interface modules.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1146570000 Overview

Use the download button to access the 1146570000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 11465, or try a keyword search, such as Terminals and Terminal Blocks
