1147200000 - Weidmüller

Description: PCB connector (board connection), 320 V, 24 A, Pitch in mm: 5.08, Number of poles: 4, THT solder connection, Box

Download 1147200000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1147200000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

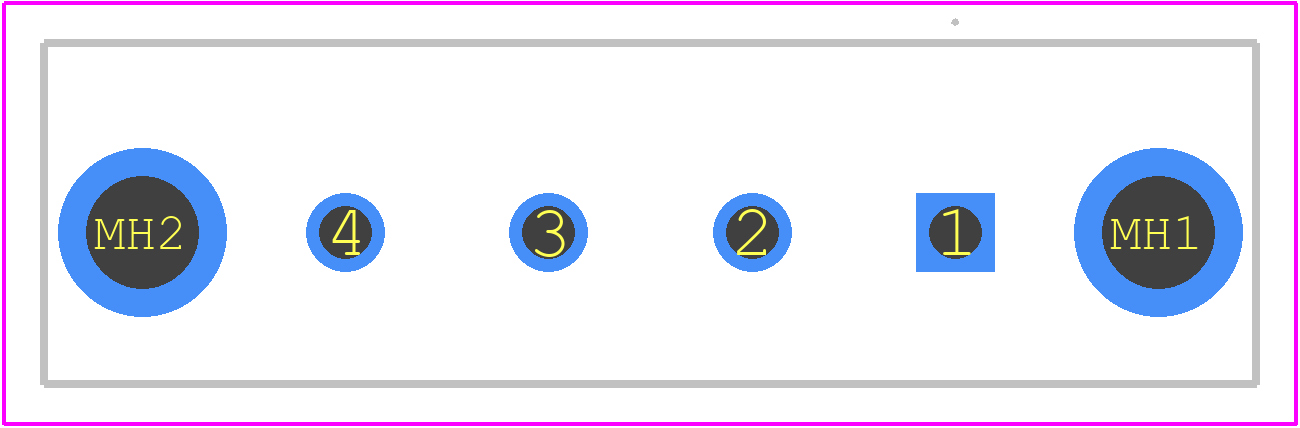

1147200000 - Weidmüller PCB footprint - Other - Other - 1147200000-1
click to zoom
3D Models
1147200000 - Weidmüller - 3D model - Other - 1147200000-1
click to zoom

1147200000 Details

  • Manufacturer Part Number:

    1147200000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    18.5 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; EAC; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1147200000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1147200000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1147200000 is designed for DIN rail mounting, making it easy to install and integrate into existing systems.
  • The maximum current rating of the 1147200000 is 10A per contact, making it suitable for use in applications that require high current handling.
  • Yes, the 1147200000 is RoHS and REACH compliant, making it suitable for use in applications that require compliance with these regulations.
  • The 1147200000 is typically used in industrial automation, process control, and power distribution applications, where reliable and secure connections are critical.
