1147510000 - Weidmüller

Description: PCB connector (board connection), 320 V, 24 A, Pitch in mm: 5.08, Number of poles: 8, THT solder connection, Box

Download 1147510000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1147510000 - Weidmüller - PCB symbol
click to zoom

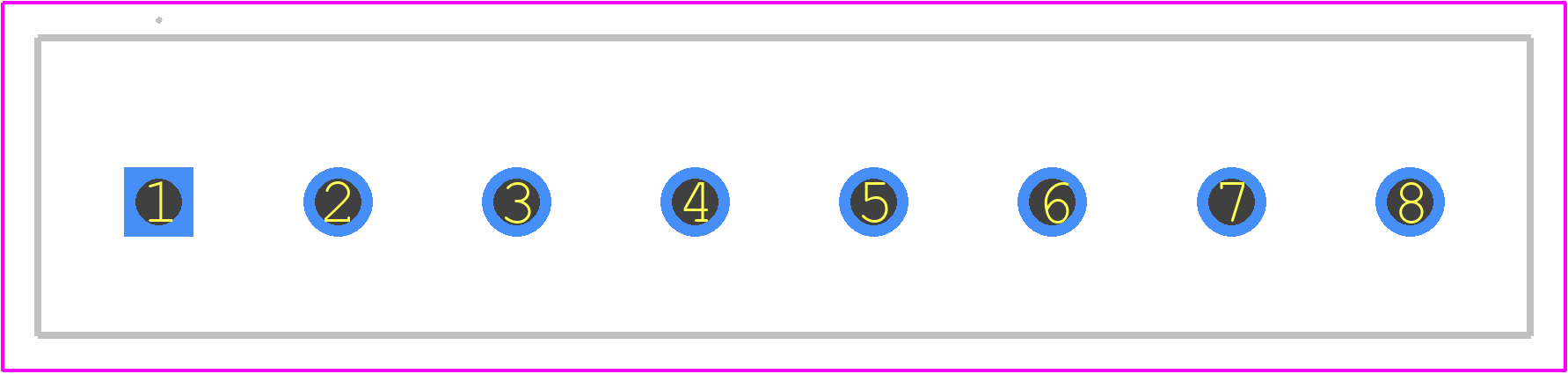

PCB Footprints
1147510000 - Weidmüller PCB footprint - Other - Other - 1147510000
click to zoom
3D Models
1147510000 - Weidmüller - 3D model - Other - 1147510000
click to zoom

1147510000 Details

  • Manufacturer Part Number:

    1147510000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks, 1 Day

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED PA

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    18.5 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; EAC; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1147510000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1147510000 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1147510000 connector is designed to withstand vibration and shock according to IEC 61373 Cat. 2 and EN 61373 Cat. 2 standards, ensuring reliable connections in harsh environments.
  • The 1147510000 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter for 30 minutes, making it suitable for use in humid or wet environments.
  • The 1147510000 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections over an extended period.
  • Yes, the 1147510000 connector is designed to be compatible with other Weidmüller products, such as their range of terminals and connectors, allowing for easy integration into existing systems.
