1149616 - Phoenix Contact

Description: CUC-MP-J1ST-A/4R4LB-LED - Modular RJ45 PCB connectors, 1x4 multi-port, connection direction of the connector to the PCB: 90 °, Tab down, Shielded, shield springs, LED (yellow, green), number of positions: 8, 10 Gbps, PoE++, THT, THD, Wave, IP20, type of packaging: Tray

Download 1149616 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1149616 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

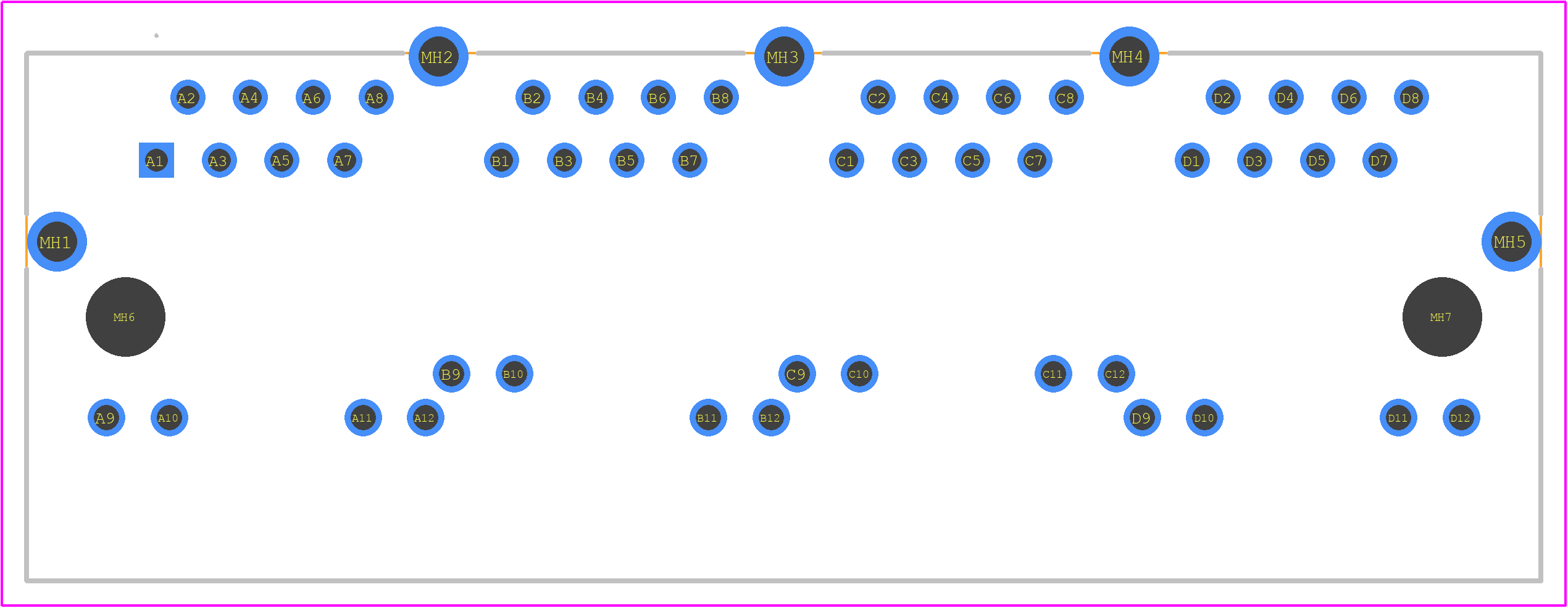

1149616 - Phoenix Contact PCB footprint - Other - Other - 1149616
