1155400000 - Weidmüller

Description: PCB connector (board connection), 320 V, 24 A, Pitch in mm: 5.08, Number of poles: 9, THT solder connection, Box

Download 1155400000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1155400000 - Weidmüller - PCB symbol
click to zoom

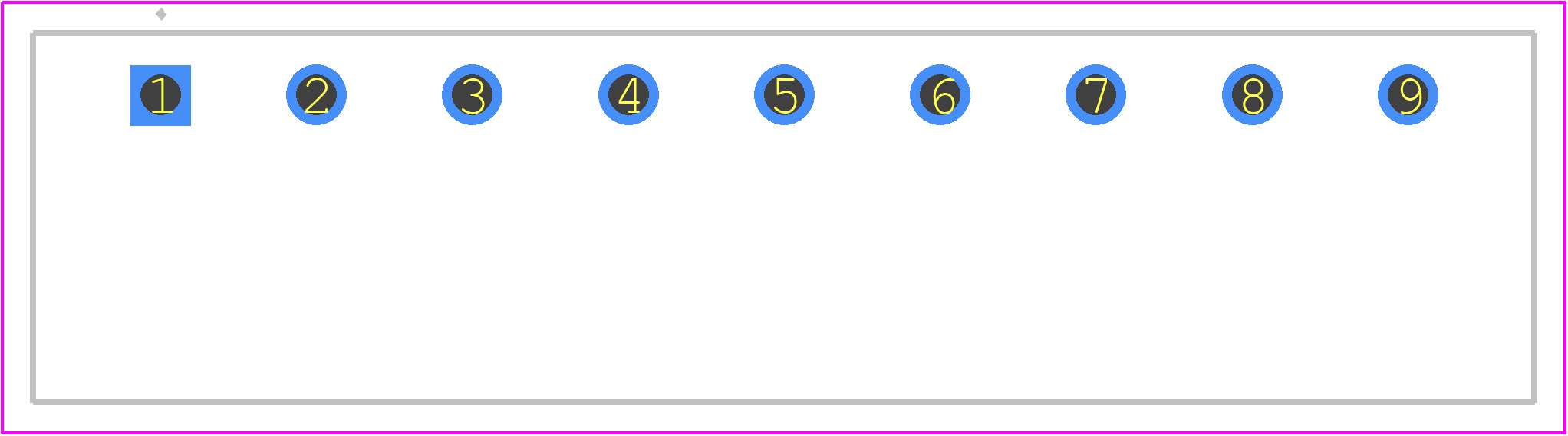

PCB Footprints
1155400000 - Weidmüller PCB footprint - Other - Other - 1155400000
click to zoom
3D Models
1155400000 - Weidmüller - 3D model - Other - 1155400000
click to zoom

1155400000 Details

  • Manufacturer Part Number:

    1155400000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK
