1155620000 - Weidmüller

Description: PCB connector (board connection), 320 V, 24 A, Pitch in mm: 5.08, Number of poles: 6, THT solder connection, Box

Download 1155620000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1155620000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

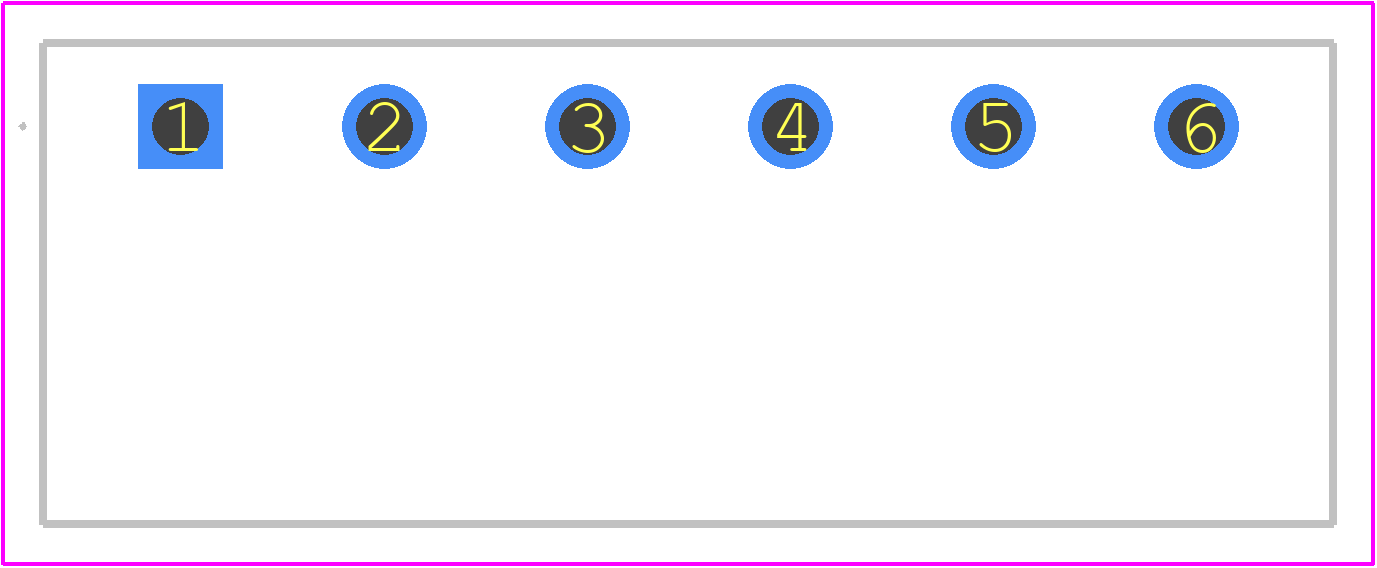

1155620000 - Weidmüller PCB footprint - Other - Other - 1155620000-1
click to zoom
3D Models
1155620000 - Weidmüller - 3D model - Other - 1155620000-1
click to zoom

1155620000 Details

  • Manufacturer Part Number:

    1155620000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks, 1 Day

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: 94V-0, GLASS FILLED PA

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    18.5 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; CUL; EAC; IEC; KEMA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK
