1155730000 - Weidmüller

Description: PCB connector (board connection), 320 V, 24 A, Pitch in mm: 5.08, Number of poles: 16, THT solder connection, Box

Download 1155730000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1155730000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

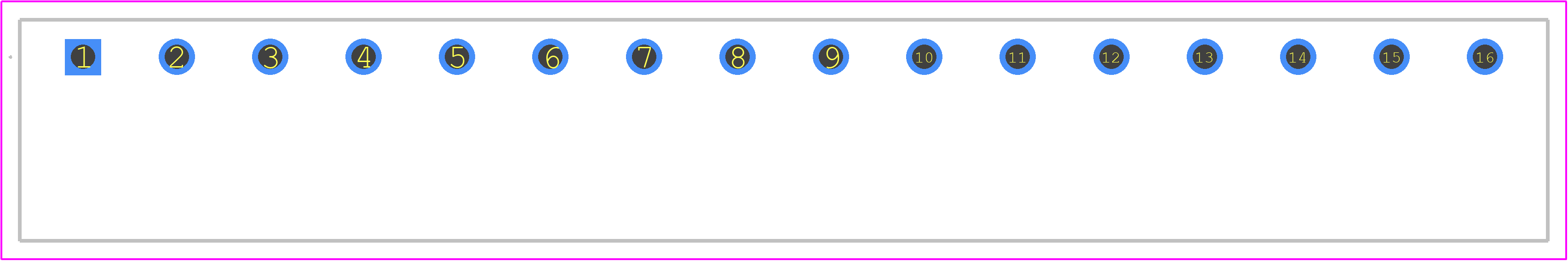

1155730000 - Weidmüller PCB footprint - Other - Other - 1155730000-1
click to zoom
3D Models
1155730000 - Weidmüller - 3D model - Other - 1155730000-1
click to zoom

1155730000 Details

  • Manufacturer Part Number:

    1155730000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks, 1 Day

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1155730000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1155730000 is -40°C to 85°C, according to the manufacturer's specifications.
  • Yes, the 1155730000 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The maximum current rating of the 1155730000 is 16 A, according to the datasheet.
  • Yes, the 1155730000 is designed to be used in harsh environments, including industrial and outdoor applications, due to its rugged construction and IP67 rating.
  • Yes, the 1155730000 is designed to be compatible with other Weidmüller products, including their range of connectors, cables, and interfaces.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1155730000 Overview

Use the download button to access the 1155730000 schematic symbol, PCB footprint, and 3D model.
