1190301 - Phoenix Contact

Description: LPT 2,5/ 6-5,0 - Printed circuit board terminal, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm<sup>2</sup>, number of potentials: 6, number of rows: 1, number of positions per row: 6, product range: LPT 2,5/, pitch: 5 mm, connection method: Lever Push-in connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, type of packaging: packed in cardboard

Download 1190301 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1190301 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

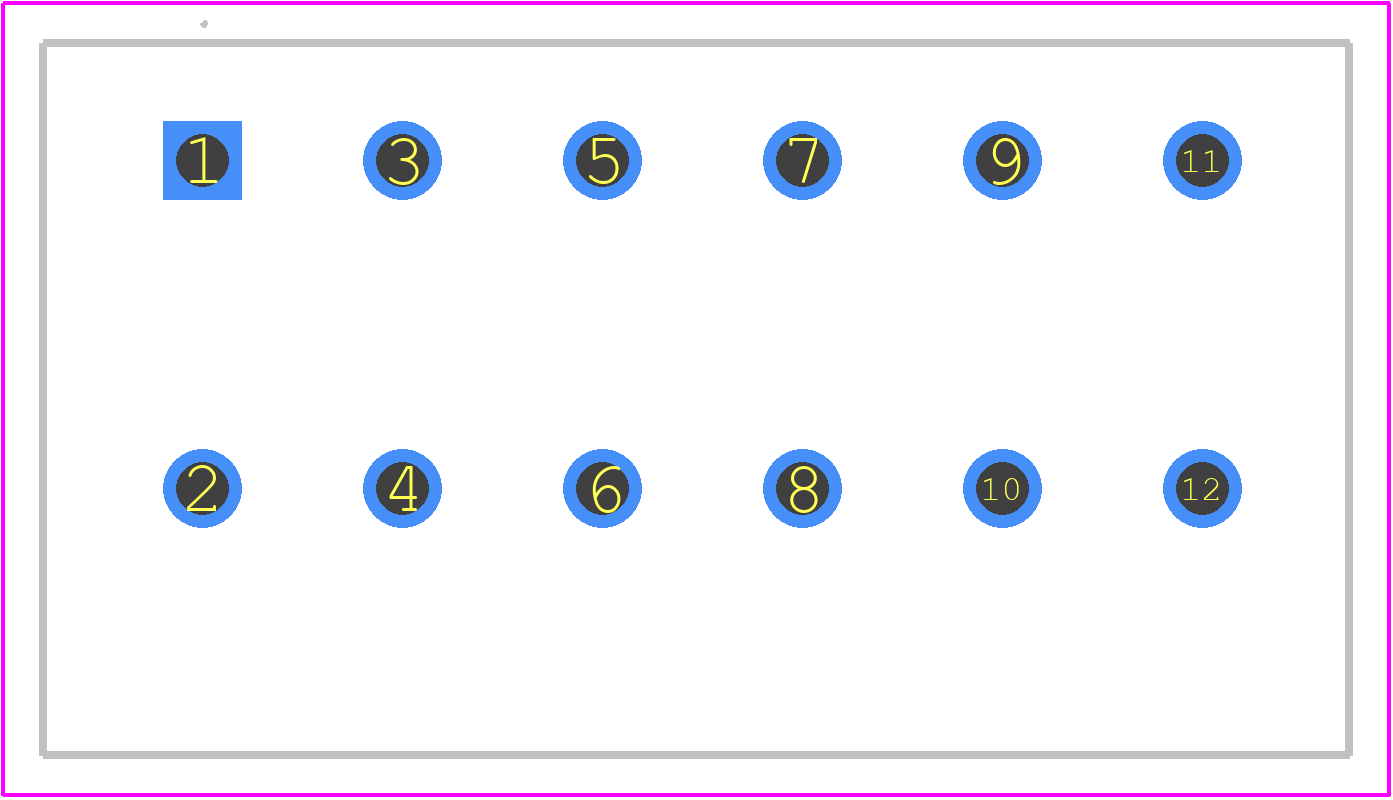

1190301 - Phoenix Contact PCB footprint - Other - Other - 1190301-2
click to zoom
3D Models
1190301 - Phoenix Contact - 3D model - Other - 1190301-2
click to zoom

1190301 Details

  • Manufacturer Part Number:

    1190301

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    PUSH-IN

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    20 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL;EX;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

1190301 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Phoenix Contact application notes.
  • Yes, the 1190301 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific application requirements.
  • The 1190301 connector is not designed for outdoor use and is intended for indoor applications only. If outdoor use is required, consider using a connector with IP67 or higher ingress protection rating.
  • Yes, the 1190301 connector is suitable for use with stranded wire. However, it's essential to follow the recommended wire preparation and termination procedures to ensure a secure connection.
  • The operating temperature range for the 1190301 connector is -40°C to +125°C, as specified in the Phoenix Contact datasheet.
