11FB-05NL - Shanghai YDS Tech

Description: 1:1 RJ45, 350uH MIN., 25pF MAX, 1500Vrms/0.5mA/60Sec or 1650Vrms/0.5mA/2Sec, Transformer SMD RoHS

Download 11FB-05NL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

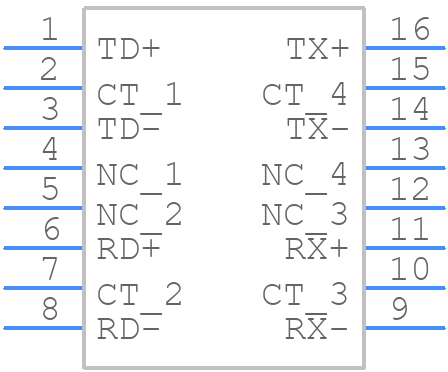

11FB-05NL - Shanghai YDS Tech - PCB symbol
click to zoom
PCB Footprints
11FB-05NL - Shanghai YDS Tech PCB footprint - Other - Other - 11FB-05NL-9
click to zoom
3D Models
11FB-05NL - Shanghai YDS Tech - 3D model - Other - 11FB-05NL-9
click to zoom

11FB-05NL Details

  • Manufacturer Part Number:

    11FB-05NL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • Manufacturer:

    Yuan Dean Scientific Co Ltd

  • Application:

    SIGNAL

  • Approvals:

    UL

  • Height:

    5.65 mm

  • Insertion Loss:

    1.1 dB

  • Isolation Voltage:

    1500 V

  • Length:

    12.8 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Secondary Winding:

    22

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Surface Mount:

    YES

  • Transformer Type:

    DATACOM TRANSFORMER

  • Width:

    6.9 mm
