12-6810-90C - ARIES

Description: 12 (2 x 6) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole, Right Angle, Vertical

Download 12-6810-90C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
12-6810-90C - ARIES - PCB symbol
click to zoom
PCB Footprints

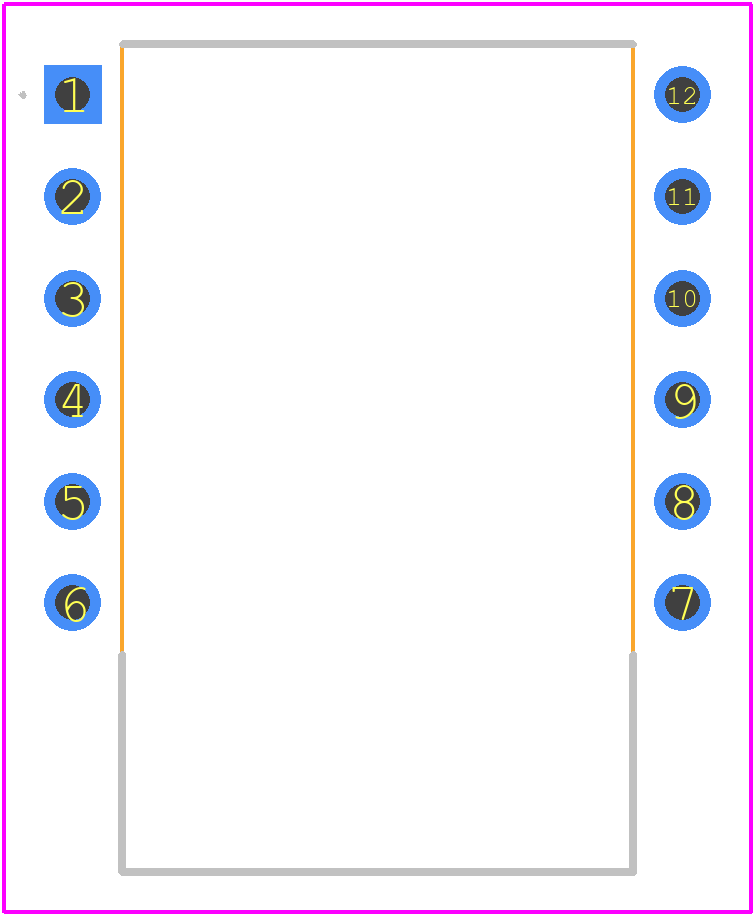

12-6810-90C - ARIES PCB footprint - Other - Other - 12-6810-90C-3
click to zoom
3D Models
12-6810-90C - ARIES - 3D model - Other - 12-6810-90C-3
click to zoom

12-6810-90C Details

  • Manufacturer Part Number:

    12-6810-90C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Aries Electronics Inc

  • YTEOL:

    7.17

  • Additional Feature:

    STANDARD: UL 94V-HB

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP12

  • Housing Material:

    NYLON

  • Number of Contacts:

    12

12-6810-90C Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the 12-6810-90C is -40°C to 125°C.
  • Yes, the 12-6810-90C is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The typical lead time for the 12-6810-90C is 4-6 weeks, but this may vary depending on the quantity and availability.
  • Yes, the 12-6810-90C is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and aerospace applications.
  • Yes, the 12-6810-90C is compatible with lead-free soldering processes, making it suitable for use in modern manufacturing environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

12-6810-90C Overview

Use the download button to access the 12-6810-90C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 12-68, or try a keyword search, such as Sockets and Chip Carriers
