A good PCB layout for the 1203P08-U involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
The gain setting depends on the specific requirements of your application. The 1203P08-U has a gain range of 20dB to 60dB. Consider the input signal level, desired output level, and noise floor when selecting the gain. You may need to experiment with different gain settings to find the optimal value.
The maximum input signal level before clipping occurs is approximately 2.5Vrms (7.07Vpp) for a gain setting of 40dB. However, this value may vary depending on the specific gain setting and output load. It's recommended to consult the datasheet and perform experiments to determine the maximum input signal level for your specific application.
To minimize noise and hum, use a well-regulated power supply, keep the input and output traces away from noisy digital signals, and use shielding or guard rings around the input and output pins. Additionally, consider using a common-mode filter or a balanced input stage to reduce noise and hum.
A recommended power supply decoupling scheme for the 1203P08-U involves using a 10uF ceramic capacitor in parallel with a 1uF film capacitor, both connected between the power supply pins (VCC and GND) and placed close to the device. This helps to filter out high-frequency noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1203P08-U Overview

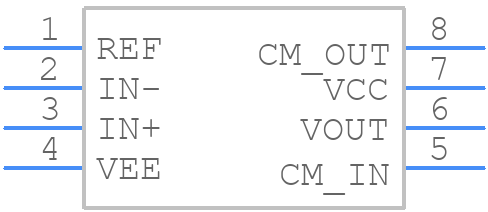

Use the download button to access the 1203P08-U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1203P,
or try a keyword search, such as Other Signal Circuits
