Part Image

120958-2 - TE Connectivity

Description: Configuration Features: Number of Rows 1 | Number of Power Positions 8 | Number of Positions 8 | Number of Signal Positions 0 | PCB Mount Orientation Right Angle | Contact Features: PCB Contact Termination Area Plating Material Tin | Contact Current Rating (Max) 16 AMP | Contact Mating Area Plating Material Gold | Contact Underplating Material Nickel | Contact Mating Area Plating Material Thickness .5 – 1.25 MICM | Contact Base Material Copper Alloy | Contact Type Blade | Contact Retention Within Housing

Download 120958-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

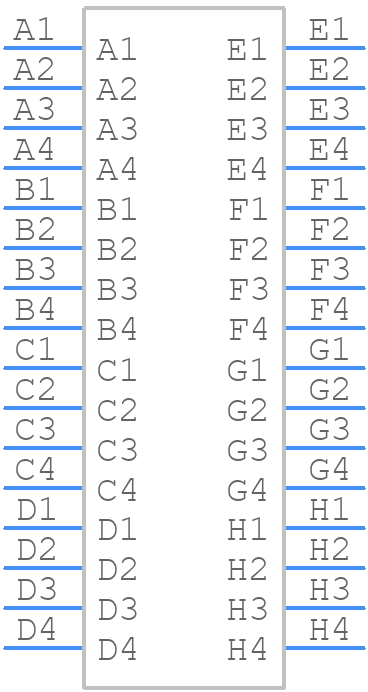

120958-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

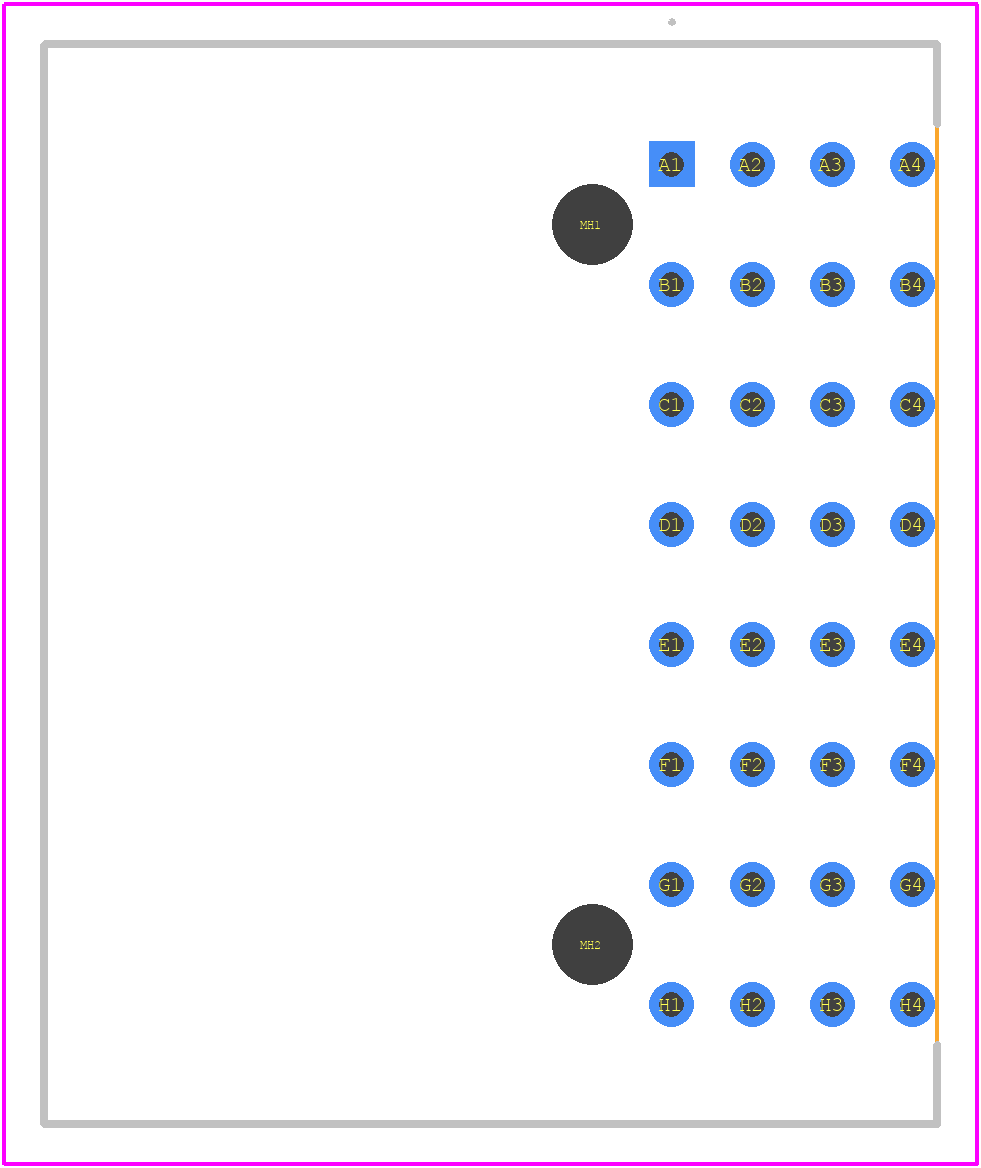

120958-2 - TE Connectivity PCB footprint - Other - Other - 120958-2-2
click to zoom
3D Models
120958-2 - TE Connectivity - 3D model - Other - 120958-2-2
click to zoom

120958-2 Details

  • Manufacturer Part Number:

    120958-2

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.1

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    GRAY

  • Insulator Material:

    GLASS FILLED POLYESTER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    16A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    49.21u inch

  • Rated Current (Signal):

    16 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    3 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

120958-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 120958-2 connector is designed to withstand high-vibration environments, but it's recommended to consult with TE Connectivity's application engineers to ensure the connector meets the specific vibration requirements of your application.
  • The operating temperature range for the 120958-2 connector is -40°C to 125°C (-40°F to 257°F).
  • The 120958-2 connector is designed to be resistant to harsh environments, but it's recommended to consult with TE Connectivity's application engineers to ensure the connector meets the specific environmental requirements of your application.
  • While the 120958-2 connector is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, it's recommended to consult with TE Connectivity's application engineers to ensure the connector meets the specific wire size requirements of your application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

120958-2 Overview

Use the download button to access the 120958-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 12095, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
